An automobile engineer is redesigning a conical chamber that was originally specified to be 12 inches long with a circular base of diameter 5.7 inches. In the new design, the chamber is scaled by a factor of 1.5. The volume of the original chamber is cubic inches. This is cubic inches less than the volume of the new chamber. NextReset

2 Answers

6 votes

Answer:

added pictures of all the questions on this test

Explanation:

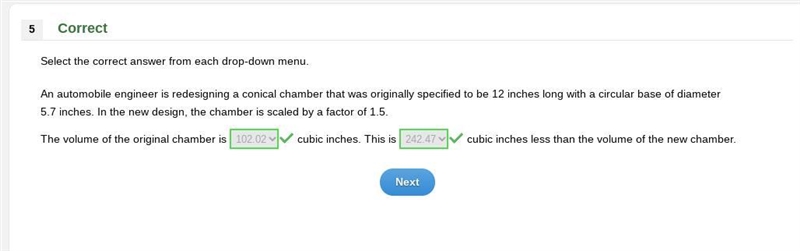

An automobile engineer is redesigning a conical chamber that was originally specified-example-1

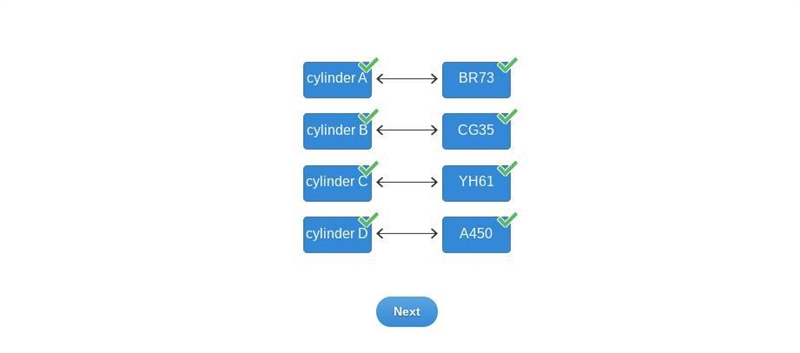

An automobile engineer is redesigning a conical chamber that was originally specified-example-2

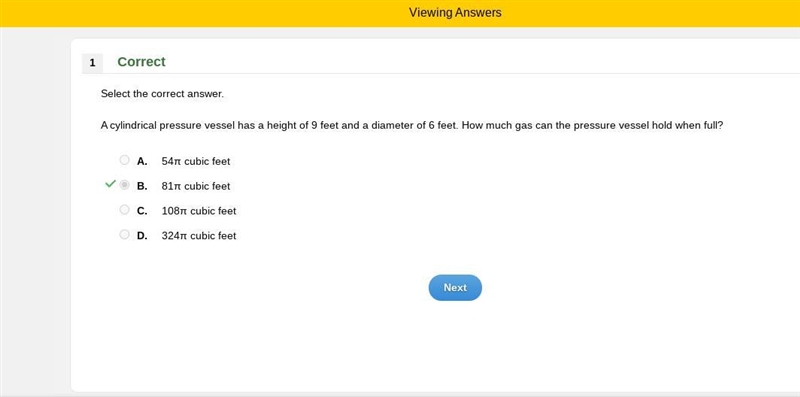

An automobile engineer is redesigning a conical chamber that was originally specified-example-3

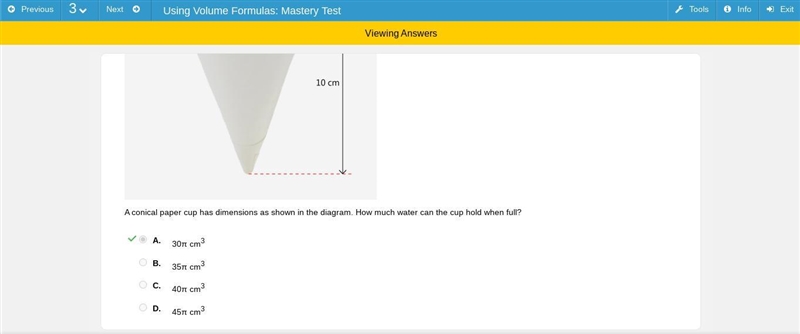

An automobile engineer is redesigning a conical chamber that was originally specified-example-4
An automobile engineer is redesigning a conical chamber that was originally specified-example-5
User Martin Gottweis
by
7.9k points
5 votes
Original chamber:
Length, L = 12 in.
Base diameter, d = 5.7 in.
The volume is
V = (1/3)*(πd²/4)*L = (1/3)*(π/4)(5.7 in)²*(12 in) = 102.07 in³

Scaled chamber:
Because the scale factor is 1.5, obtain
Length = 1.5*12 = 18 in.
Base diameter = 1.5*5.7 = 8.55 in
The new volume is
V (1/3)*(π/4)*(8.55 in)²*(18 in) = 344.49 in³

Differenc in volumes = 344.49 - 102.07 = 242.42 in³

Answer: 242.4 in³ (nearest tenth)
