A 0.62112 slug uniform disc A is pinned to a 0.12422 slug uniform rod CB which is pinned to a 0.03106 slug collar C. C slides on a smooth vertical rod and the disc rolls without slipping. Determine: a) the angular acceleration ofA and the acceleration of C when released from rest and b)The velocity of B and C when the rod is horizontal. Ans:b) vc

User Youfu
by
9.1k points

1 Answer

6 votes

Answer:

Explanation: check the attached document for step by step solution.

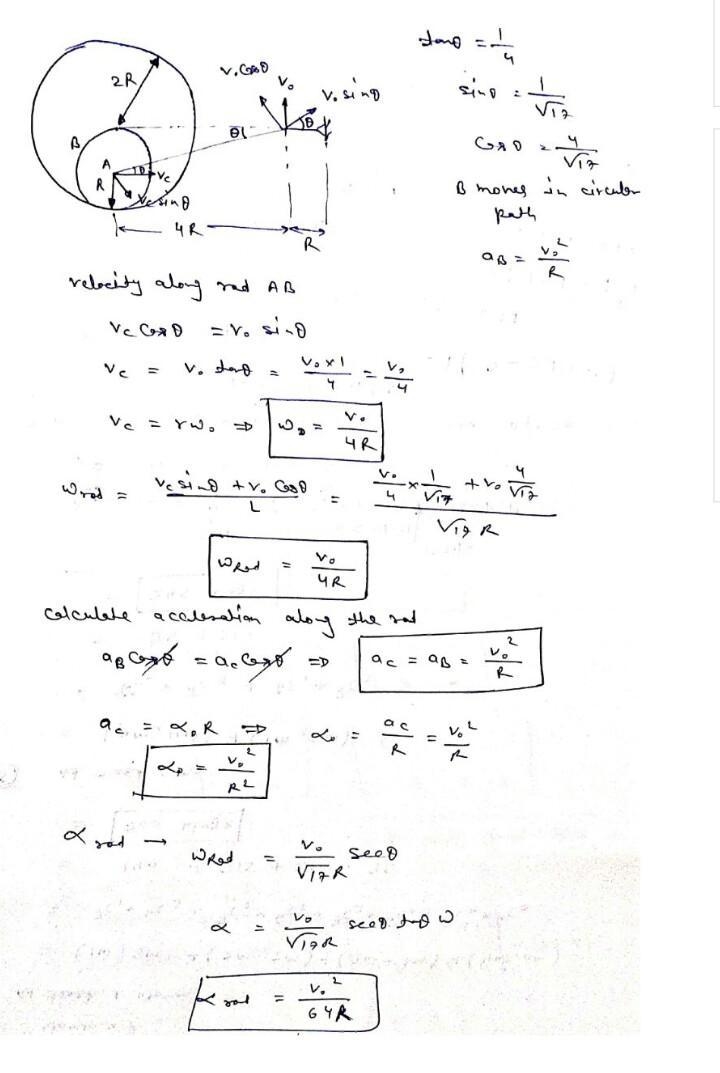

A 0.62112 slug uniform disc A is pinned to a 0.12422 slug uniform rod CB which is-example-1
