Represent the data in a mapping diagram. {(−3, 2), (−1, 0), (1, 2), (3, 4)} Does the relation pass the vertical line test? What can you conclude from your answer?

User IPValverde
by
8.3k points

1 Answer

3 votes

Draw two ovals labeled "input" and "output". The terms "domain" and "range" will work as well.

The values -3, -1, 1, 3 go in the "input" oval. These are the x values.

The y values 2, 0, 2, 4 go in the "output" oval. Let's remove the second copy of "2" and we get the set 2, 0, 4

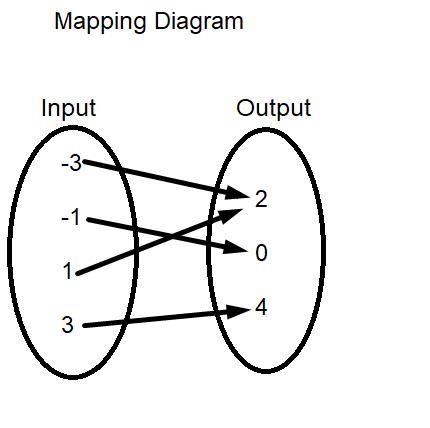

Check out the diagram below.

If you were to plot all of the points on the xy grid, then none of the points vertically align. It means we cannot draw a single vertical line through 2 or more points. Therefore, the data points pass the vertical line test. This relation is a function.

Represent the data in a mapping diagram. {(−3, 2), (−1, 0), (1, 2), (3, 4)} Does the-example-1
User MaxH
by
8.3k points
