When a solute is added to a solvent like water, it typically affects the phase diagram by altering the phase transition points.

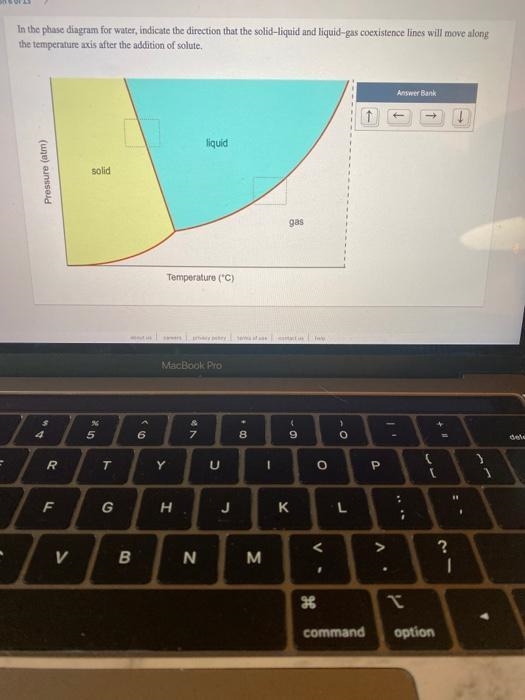

Phase Diagram of Water:
Step 1: Understanding Phase Transitions in a Phase Diagram
A phase diagram illustrates the equilibrium between different states of matter (solid, liquid, gas) of a substance under varying temperature and pressure conditions.
Step 2: Effects of Adding a Solute to Water
Adding a solute to water affects its freezing point and boiling point.
Freezing Point Depression: When a solute is added, the freezing point of the solvent (water) decreases. This means that the solid-liquid coexistence line shifts to lower temperatures on the temperature axis.
Boiling Point Elevation: Similarly, the boiling point of the solvent increases when a solute is added. This results in the liquid-gas coexistence line shifting to higher temperatures on the temperature axis.
Step 3: Direction of Movement of Coexistence Lines
Solid-Liquid Coexistence Line:
After adding a solute to water, the line representing the coexistence of solid and liquid phases shifts to lower temperatures on the temperature axis. This shift occurs because the freezing point of the solution decreases due to the presence of the solute.
Liquid-Gas Coexistence Line:The line representing the coexistence of liquid and gas phases shifts to higher temperatures on the temperature axis. This shift happens because the boiling point of the solution increases when a solute is added to the solvent.
Conclusion:
After the addition of a solute to water, the solid-liquid coexistence line in the phase diagram moves to lower temperatures, while the liquid-gas coexistence line moves to higher temperatures along the temperature axis.
This alteration in the phase diagram reflects the changes in freezing and boiling points of the solution due to the presence of the solute, affecting the phase transitions of the solvent (water).
