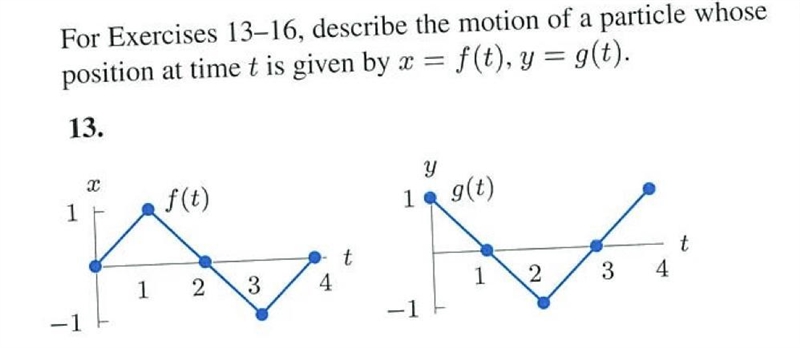

Can someone help me with this calc bc work for #13

Can someone help me with this calc bc work for #13-example-1
User Cberner
by
7.9k points

1 Answer

7 votes

The horizontal axis for each graph is the value of t. It represents which moment in time we're at.

The vertical axis for the left and right graphs are the x and y coordinates respectively.

At time t = 0, we have x = 0 pair up with y = 1. Therefore, the particle starts at the location (0,1).

At time t = 1, we now have x = 1 pair up with y = 0. The particle is at location (1,0) at time t = 1.

Repeat this process until reaching t = 4.

Here's a table of values


\begin{array} \cline{1-2}t & (x,y)\\\cline{1-2}0 & (0,1)\\\cline{1-2}1 & (1,0)\\\cline{1-2}2 & (0,-1)\\\cline{1-2}3 & (-1,0)\\\cline{1-2}4 & (0,1)\\\cline{1-2}\end{array}

We go from (0,1) to (1,0) then to (0,-1) and next to (-1,0) before arriving at (0,1) once again.

The particle takes a clockwise journey starting at (0,1) and ends up back at (0,1) when t = 4.

This motion is somewhat similar to the periodic motion found on the unit circle.
