Answer + Method / Explanation please ​
60.8k views
1 vote
Answer + Method / Explanation please ​

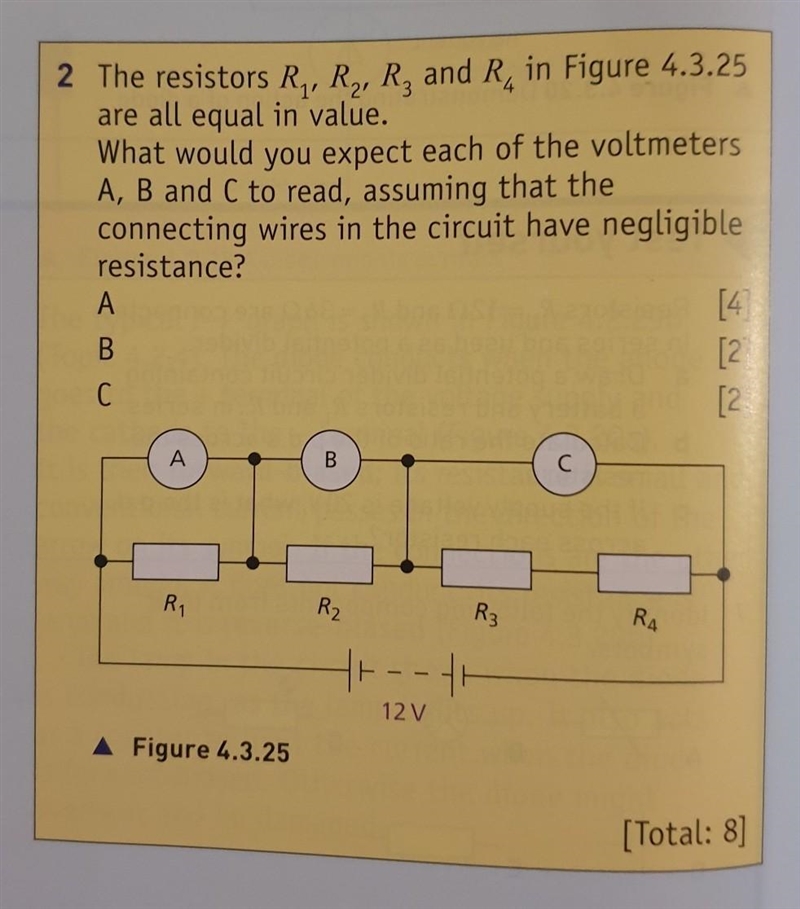

Answer + Method / Explanation please ​-example-1
User Lucas Zhang
by
8.6k points

1 Answer

2 votes

Step-by-step explanation:

Since the resistors are equal Ω value and connected in series, EACH resistor should have the same voltage drop across it: 3 v ( for a total of 12 v)

A should read 3v

B should read 3v

C should read 6 v ( as it measures across two resistors)

User Octavian
by
8.5k points
