Question

A Boolean function has 4 inputs A, B, C, and D. The output of this function is to be high (1) only when a majority of the inputs is high (1).

Find the truth table for this function.


Find the most simplified logic equation for this function.


Implement your circuit using logic gates.


Convert your circuit to a NAND-ONLY implementation

Answer 1

Step-by-step explanation:

please see the enclosed attachment for detailed explanation and step by step working.

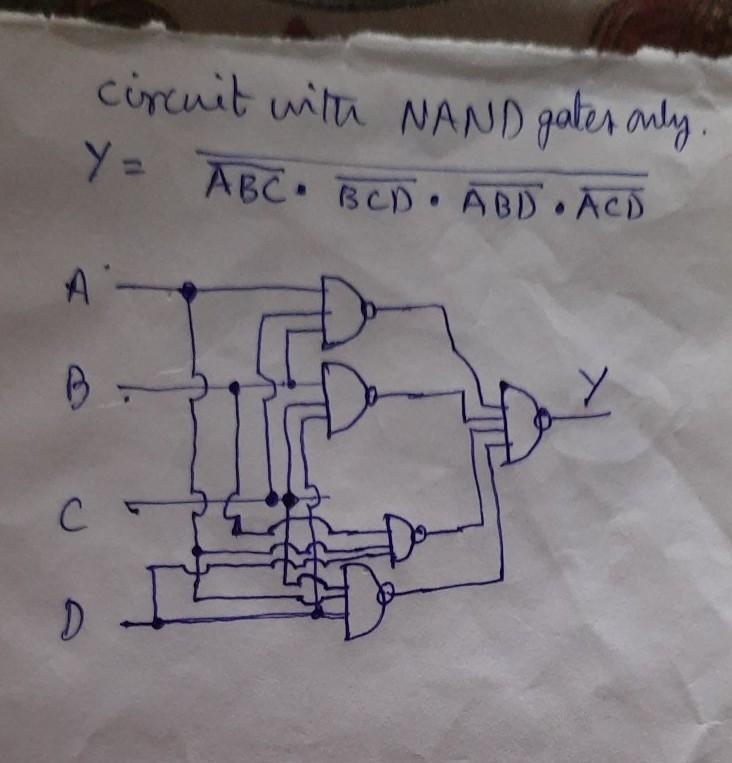

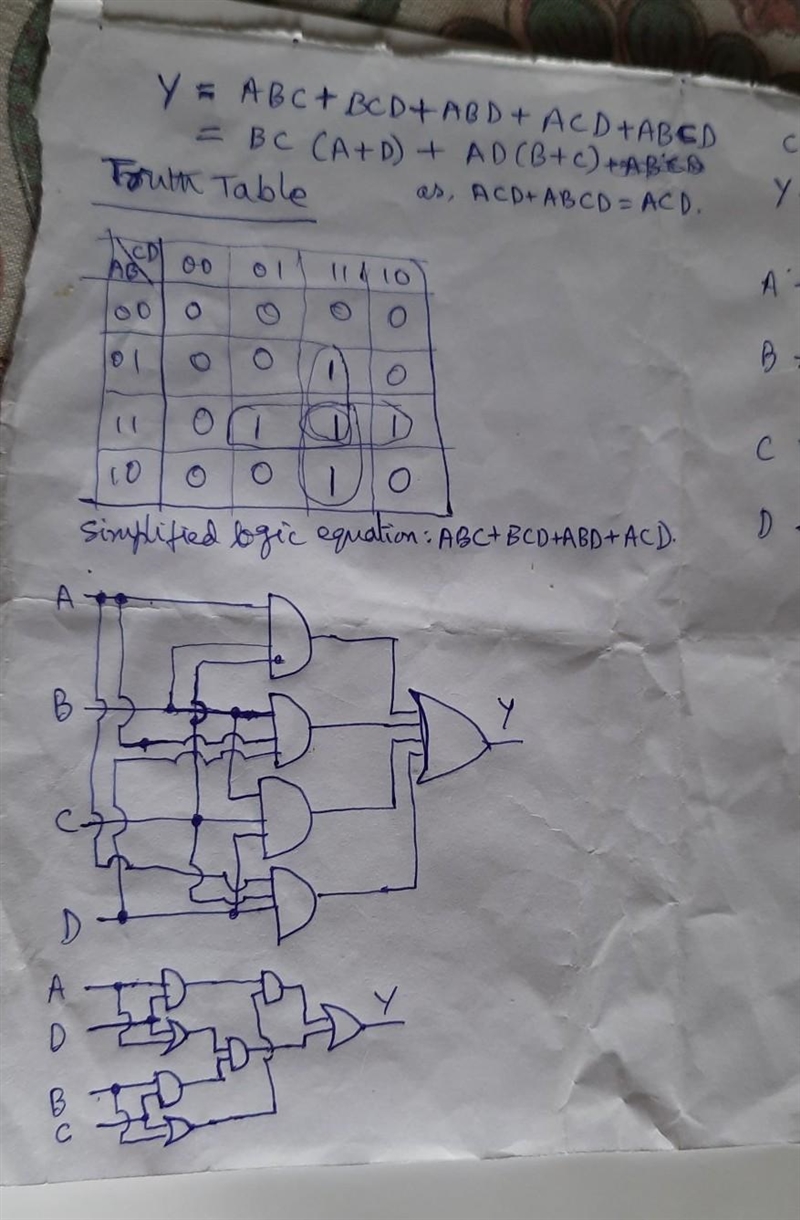

Truth Table, and both circuit diagrams are enclosed.
