Need help asap!!!!!

Need to graph and know the points

Need help asap!!!!! Need to graph and know the points-example-1
User Edi Wang
by
8.5k points

2 Answers

4 votes

Answer:

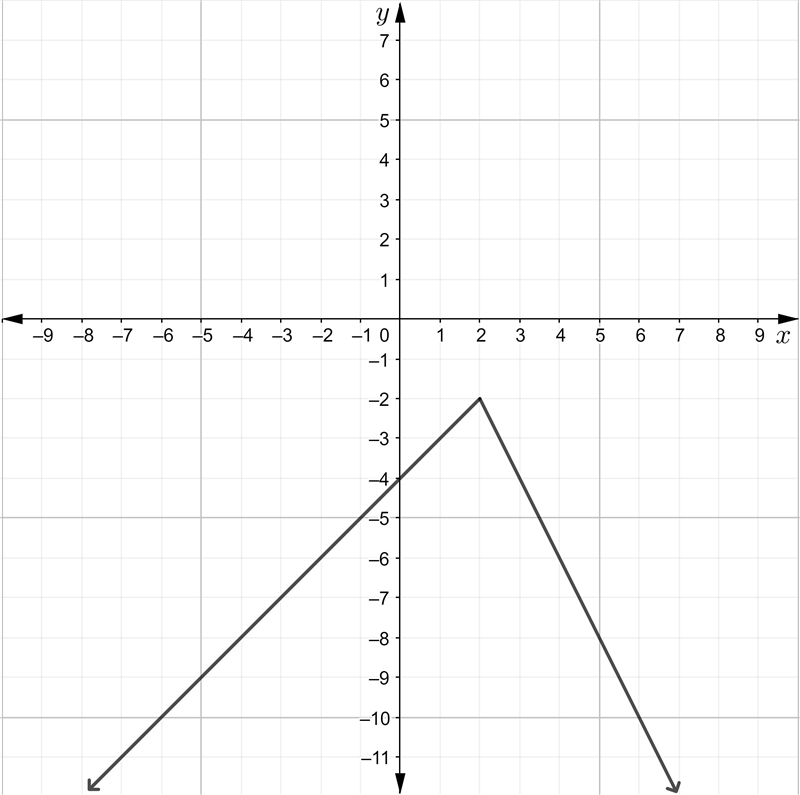

See the attachment for the graph of the piecewise function.

Plot points (2, -2), (-4, -8) and (4, -6).

Draw a straight line from (2, -2) through (-4, -8).

Draw a straight line from (2, -2) through (4, -6).

Add arrows at the ends of the lines to show that they continue indefinitely in that direction.

Explanation:

Piecewise functions have multiple pieces of curves and/or lines, where each piece corresponds to its definition over an interval.

Given piecewise function:


f(x)=\begin{cases}x-4\; &amp;\text{if}\;\;x < 2\\-2x+2\; &amp; \text{if}\;\;x\geq 2\end{cases}

Therefore, the function has two definitions:

  • f(x) = x - 4 when x is less than 2.
  • f(x) = -2x + 2 when x is more than or equal to 2.

When graphing piecewise functions:

  • Use an open circle where the endpoint is not included in the interval.
  • Use a closed circle where the endpoint is included in the interval.
  • Use an arrow to show that the function continues indefinitely in that direction.

First piece of the function

Substitute the endpoint x = 2 into the first function:


f(2)=2-4=-2

As x = 2 is not included in the interval, place an open circle at point (2, -2).

To help graph the line, find another point on the line by inputting another value of x that is less than 2 into the same function:


f(-4)=-4-4=-8

Plot point (-4, -8) and draw a straight line from the open circle at (2, -2) through point (-4, -8). Add an arrow at the other endpoint to show it continues indefinitely as x → -∞.

Second piece of the function

Substitute the endpoint x = 2 into the second function:


f(2)=-2(2)+2=-2

Notice that the endpoint of this piece of the function when x = 2 is the same as the endpoint of the first piece of the function when x = 2.

Therefore, we need to remove the open circle we placed earlier as (2, -2), as the function is continuous at x = 2.

To help graph the line of the second piece of the function, find another point on the line by inputting another value of x that is more than 2 into the same function:


f(4)=-2(4)+2=-6

Plot point (4, -6) and draw a straight line from (2, -2) through point (4, -6). Add an arrow at the other endpoint to show it continues indefinitely as x → ∞.

Need help asap!!!!! Need to graph and know the points-example-1
User Pbies
by
7.8k points
2 votes

Answer:

Graphing by plotting system.

In order to graph the function
\tt f(x) = \begin{cases} x-4, &amp; \text{if } x < 2 \\ -2x+2 &amp; \text{if } x \geq 2 \end{cases}

we'll follow the same steps as before.

1. For x < 2

The function is f(x) = x - 4 for values less than 2.

Let's choose three values for x to create the line segment:

x = 0: f(0) = 0 - 4 = -4 Point A(0, -4)

x = 1: f(1) = 1 - 4 = -3 Point B(1, -3)

x=2: f(2) is not defined in this case since the condition is x< 2.

2. For
\tt x \geq 2

The function becomes f(x) = -2x + 2 for x greater than or equal to 2.

Let's choose three values for x to create the line segment:

x = 2: f(2) = -2(2) + 2 = -2 Point C(2, -2)

x = 3: f(3) = -2(3) + 2 = -4 Point D(3, -4)

x = 4: f(4) = -2(4) + 2 = -6 Point E(4, -6)

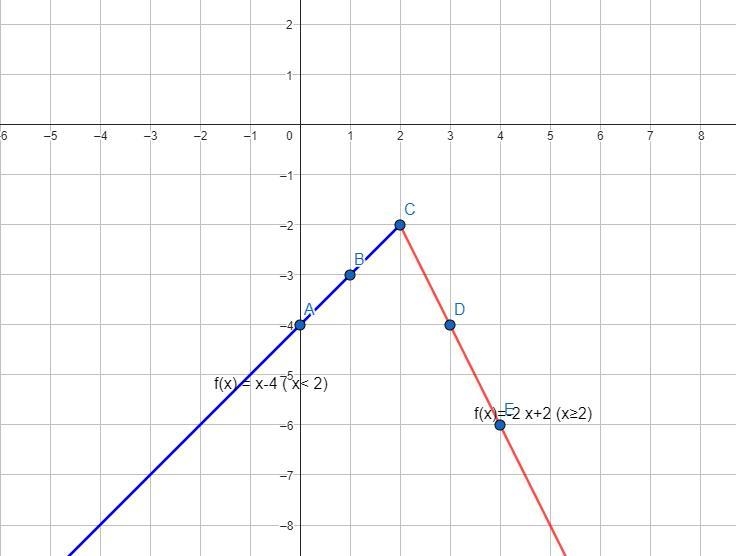

Plot the above points and make a straight line.

The graph shows that two lines are joined at point C(2, -2)

Need help asap!!!!! Need to graph and know the points-example-1
User Megamug
by
8.1k points
