Question

Is there a difference between shapes when plotting Uniform acceleration towards (+)directtion,Uniform acceleration towards (-)direction, Uniform deceleration towards (+) direction and Uniform deceleration towards (-) direction in displacement time graph.Can you draw the shapes for each type ?

Answer 1

Step-by-step explanation:

Yes, there are differences in the shapes of position-time graphs for uniform acceleration and uniform deceleration in different directions. Let's consider each case separately:
`\hrulefill`

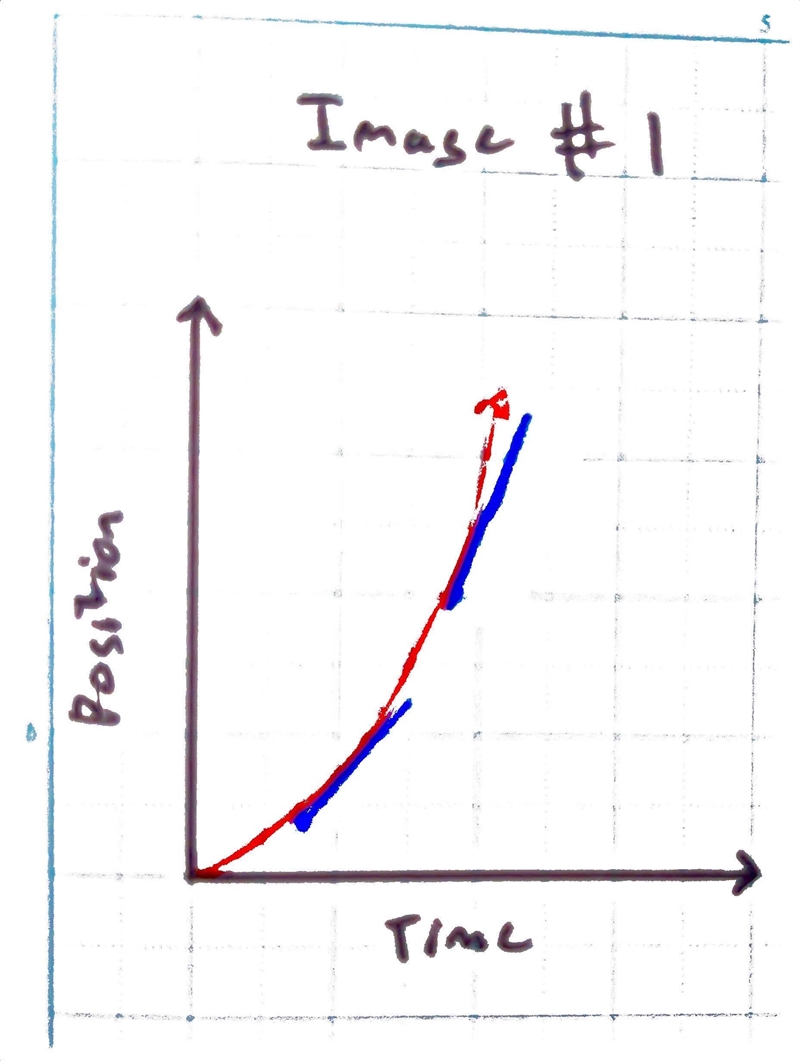

(1) - Uniform acceleration towards the positive direction:

In this case, the object is moving in the positive direction with a constant acceleration. The displacement-time graph will typically be a curve that starts from an initial position and shows a steady increase in displacement over time. The shape of the graph will depend on the specific acceleration value.

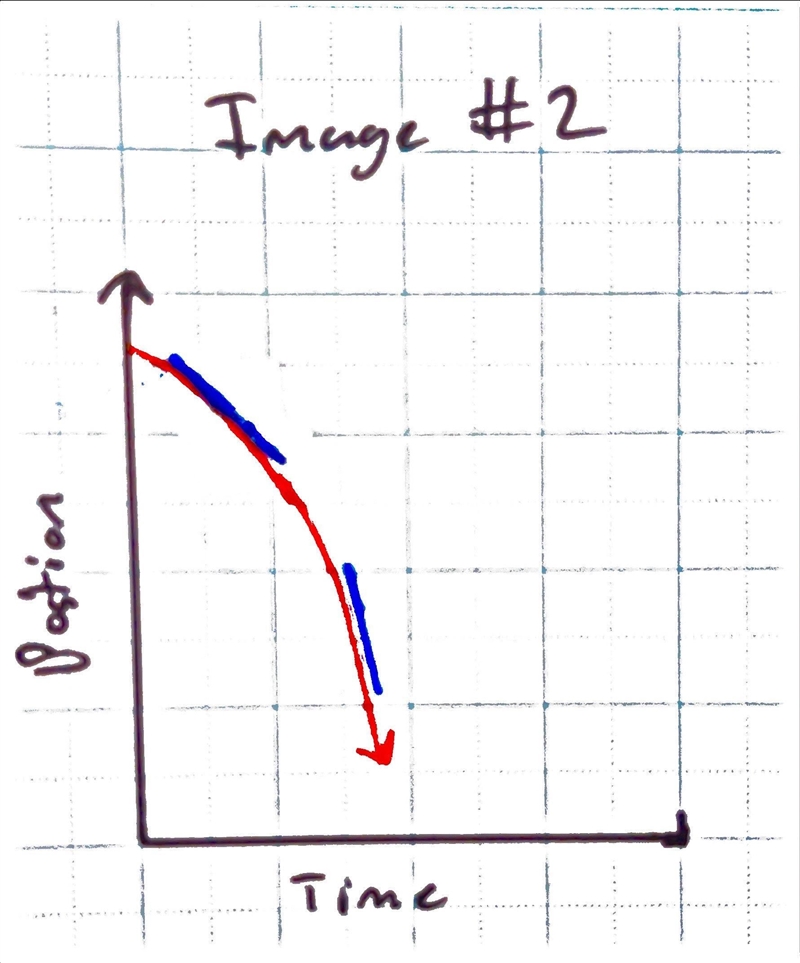

(2) - Uniform acceleration towards the negative direction:

In this case, the object is moving in the negative direction with a constant acceleration. The displacement-time graph will also be a curve, but it will show a steady decrease in displacement over time.

(3) - Uniform deceleration towards the positive direction:

In this case, the object is initially moving in the positive direction but is slowing down with a constant deceleration. The displacement-time graph will be a curve that starts with a positive slope and gradually levels off.

(4) - Uniform deceleration towards the negative direction:

In this case, the object is initially moving in the negative direction but is slowing down with a constant deceleration. The displacement-time graph will be a curve that starts with a negative slope and gradually levels off.
