A random binary data sequence 1101100101... is to be transmitted in baseband. (a) If the baseband uses a Manchester (split-phase) line code. Sketch the time domain baseband waveform y(t). (b) Using the same pulseshape as in 9-1, sketch the time domain waveform of the baseband signal for polar signaling (c) Using the same pulseshape as in 9-1, sketch the time domain waveform of the baseband signal for bipolar signaling (d) Sketch the eye diagram of the polar signaling of (b) with many more random data bits to send. (e) Sketch the eye diagram of the bipolar signaling of (c) with many more random data bits to send.

Answer 1

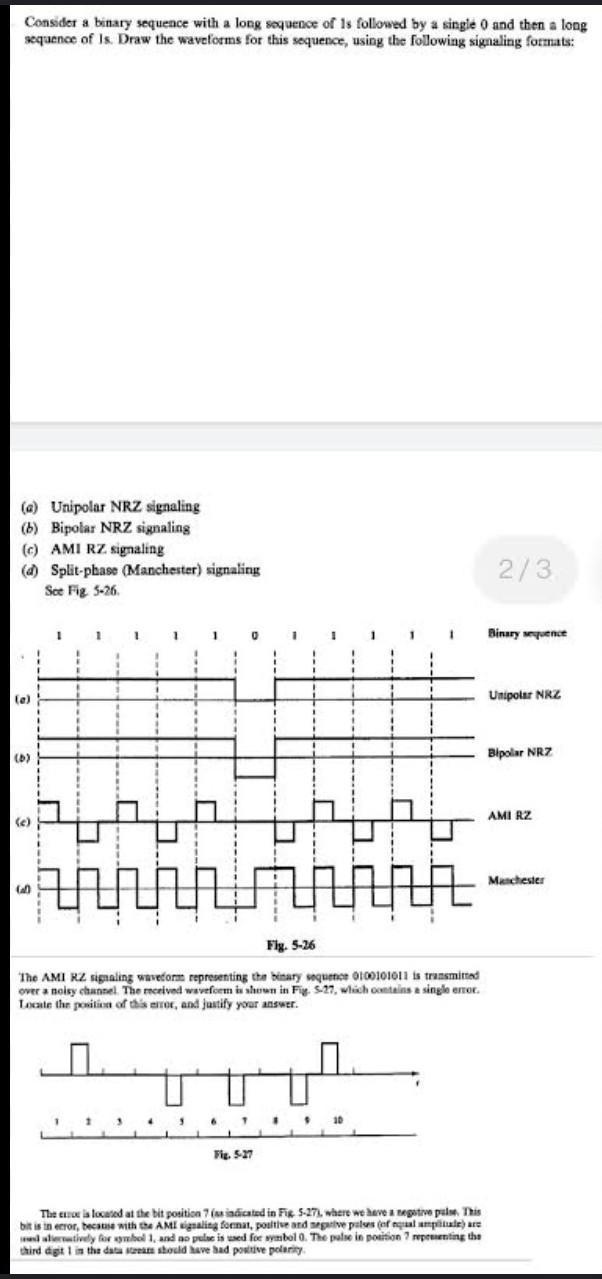

Step-by-step explanation:

I hope this answer is helpful):
