A train of mass 2 x 10^5 kg moves at a constant speed of 72 kmh-¹ up a straight inclined against a frictional force of 1.28 × 10^4N. The incline is such that the train rises vertically 1.0 m for every 100 m travelled along the incline. Calculate the necessary power developed by the train. ​

User Arlin
by
8.8k points

2 Answers

3 votes

Answer:

100×1.28

Step-by-step explanation:

hope you like it

User Louis Chatriot
by
8.9k points
2 votes

Answer:

Approximately
6.5 * 10^(5)\; {\rm W} (assuming that
g = 9.81\; {\rm N\cdot kg^(-1)}.)

Step-by-step explanation:

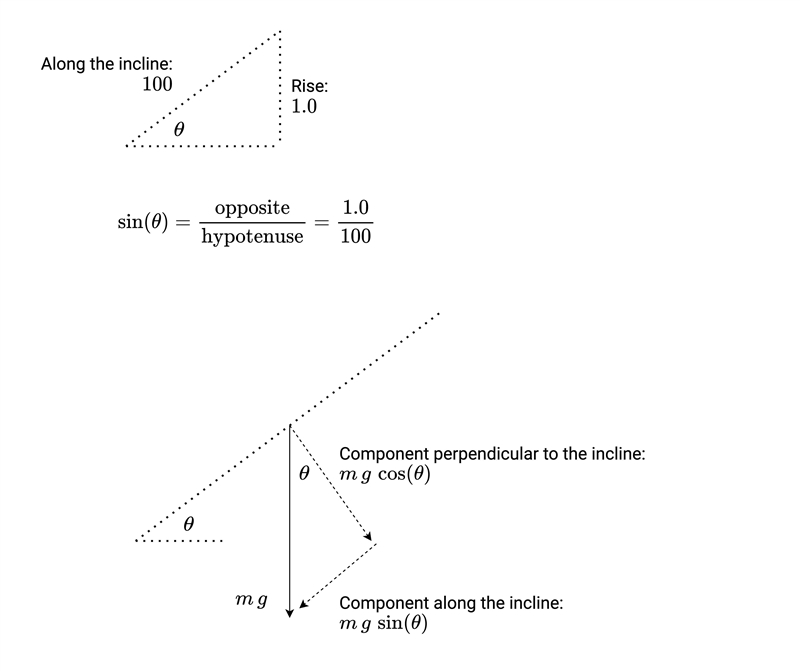

Refer to the diagram attached (not to scale.) Let
\theta denote the angle of elevation of the incline. Sine the incline rises
1.0\; {\rm m} (opposite) for every
100\; {\rm m} along the incline (hypotenuse):


\displaystyle \sin(\theta) = \frac{(\text{opposite})}{(\text{hypotenuse})} = (1.0)/(100).

Let
m = 2* 10^(5)\; {\rm kg} denote the mass of the train. Decompose the weight
m\, g of the train into two components: along the incline and perpendicular to the incline. Refer to the diagram attached (not to scale):

  • Weight along the incline:
    m\, g\, \sin(\theta).
  • Weight perpendicular to the incline:
    m\, g\, \cos(\theta).

Hence, forces on the train along the incline are:

  • Weight along the incline,
    m\, g\, \sin(\theta),
  • Friction, and
  • Force driving the train forward.

Since the train is moving at a constant velocity, forces on the train should be balanced- both along the incline and perpendicular to the incline.

For forces to be balanced in the component along the incline, the force driving the train upward should be equal to
m\, g\, \sin(\theta) + (\text{friction}).

Since
\sin(\theta) = (1.0 / 100) and
(\text{friction}) = 1.28 * 10^(4)\; {\rm N}:


\begin{aligned} & m\, g\, \sin(\theta) + (\text{friction}) \\ =\; & (2 * 10^(5))\, (9.81)\, (1.0 / 100) + (1.28 * 10^(4)) \\ \approx\; & 32420\; {\rm N}\end{aligned}.

Apply unit conversion and ensure that velocity of the train is in standard units:


\begin{aligned} v &= 72\; {\rm km\cdot h^(-1)} * \frac{1000\; {\rm m}}{1\; {\rm km}} * \frac{1\; {\rm h}}{3600\; {\rm s}} \\ &= 20\; {\rm m\cdot s^(-1)}\end{aligned}.

Power
P is the dot product of force
F and velocity
v. Since the force driving the train forward along the slope is in the same direction as velocity, the power of this force would be:


\begin{aligned} P &= F\, v \\ &= (32420 \; {\rm N})\, (20\; {\rm m\cdot s^(-1)}) \\ &\approx 6.5 * 10^(5)\; {\rm W}\end{aligned}.

A train of mass 2 x 10^5 kg moves at a constant speed of 72 kmh-¹ up a straight inclined-example-1
