Answer:
b = 9
Explanation:

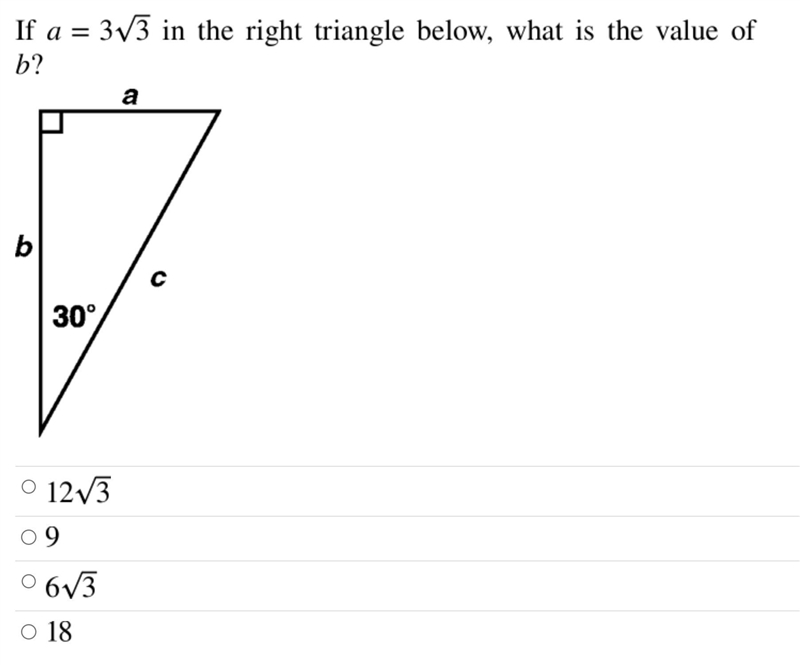

The given right triangle is a special type of triangle called a 30-60-90 triangle, as its interior angles are 30°, 60° and 90°.
The sides of a 30-60-90 triangle are in the ratio 1 : √3 : 2.
Therefore, the formula for the ratio of the sides is x : x√3 : 2x where:
- x is the shortest side opposite the 30° angle.
- x√3 is the side opposite the 60° angle.
- 2x is the longest side (hypotenuse) opposite the right angle.
From observation of the given diagram, we can see that side a is opposite the 30° angle. Given that a = 3√3, then x = 3√3.
Side b is opposite the 60° angle.
Therefore, to find the value of b, substitute x = 3√3 into the expression for the side opposite the 60° angle:

Therefore, the value of b is 9.
