Which letter represents the location of the resister in this diagram? OA OB OC OD 20 pts help ASAP please
19.5k views
0 votes
Which letter represents the location of the resister in this

diagram?
OA
OB
OC
OD
20 pts help ASAP please

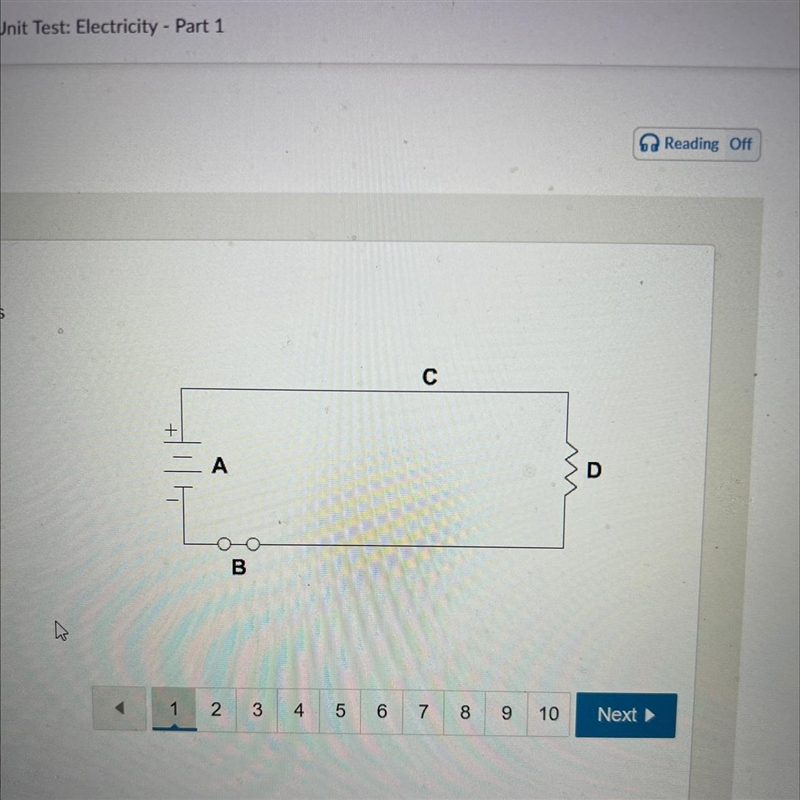

Which letter represents the location of the resister in this diagram? OA OB OC OD-example-1
User Timofei Davydik
by
8.5k points

1 Answer

7 votes

Answer:

D

Explanation:

A resistor in a circuit is represented by a ' zig- zag' line

this is the resistor at D

User Luca Perico
by
8.3k points
