Question

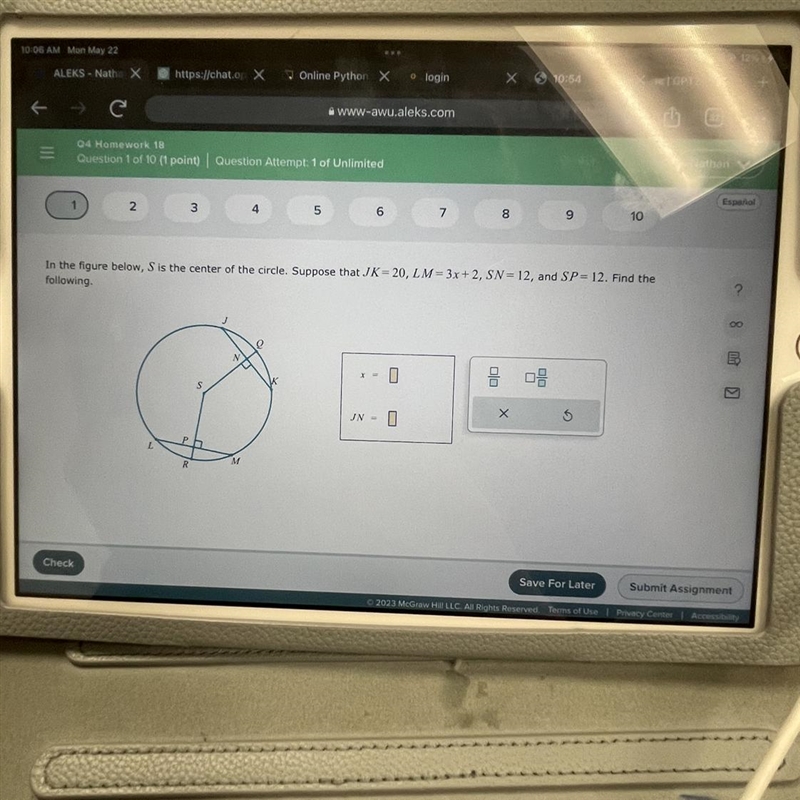

In the figure below, S is the center of the circle. Suppose that JK = 20, LM = 3x + 2, SN = 12, and SP = 12. Find the

following.

Answer 1

x = 6
JN = 10

Explanation:

if the values of SN and SP are the same, so are the corresponding sides next to the right angles.
which means:
if SP = SN, then JK = LM.
Use the reverse version of the function for calculating LM (3x + 2).
-2 * 1/3
Now apply that function to 20.
(20-2)/3
= 18/3
= 6.
x = 6
Now JK is a chord.
and Radius SQ intersects JK at a perpendicular right angle (at point N).
So JN would be half the length of JK.
20/2 = 10.
JN = 10
