11. Answer the question below. Use the rubric in the materials for help if needed.

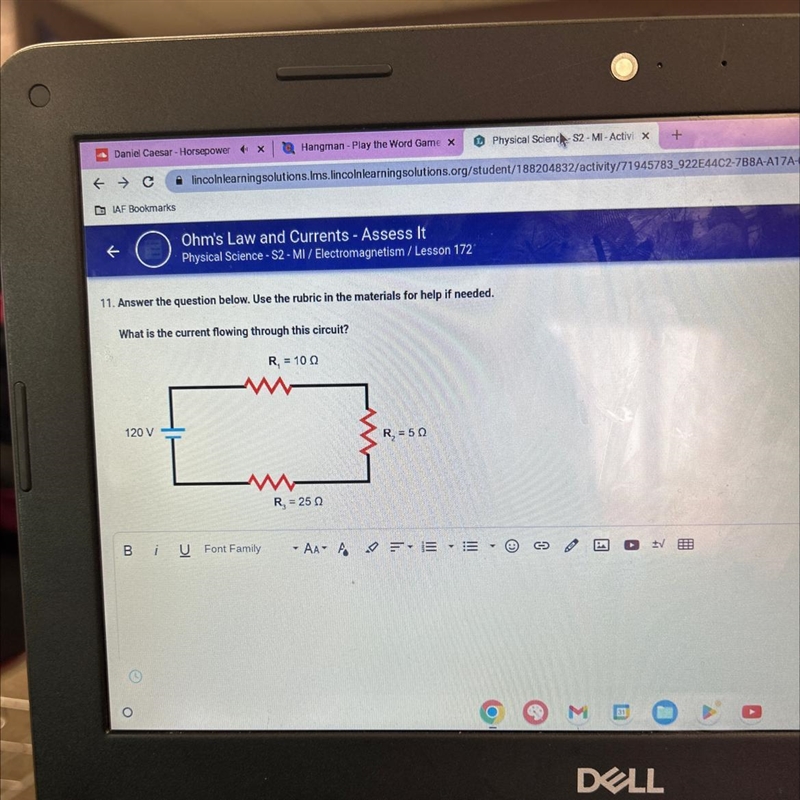

What is the current flowing through this circuit

11. Answer the question below. Use the rubric in the materials for help if needed-example-1

1 Answer

4 votes

Answer: 3A, current flowing through the circuit is 3A

Explanation: we know that the voltage given in the figure is 120V

Formula applied - I=V/R

resistors are connected in SERIES

R1= 10

R2= 5

R3= 25

R1+R2+R3=40

I=120/40 =3A

Hence current flowing is 3A
