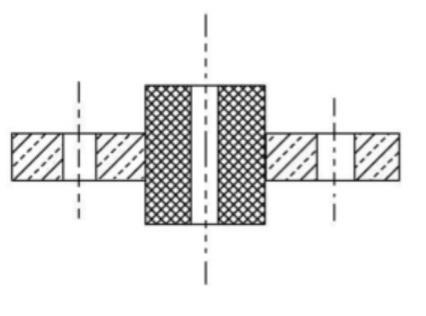

An engineer is drafting a section view for an assembly. Identify from the illustration which two materials are used in the assembly?

A.
cast iron and steel
B.
zinc and aluminum
C.
brass and zinc
D.
steel and aluminum
E.
cast iron and aluminum

An engineer is drafting a section view for an assembly. Identify from the illustration-example-1
User Boyenec
by
7.4k points

1 Answer

6 votes

Answer:

Based on the illustration, it seems that the two materials used in the assembly are cast iron and aluminum (option E).

User Rony Tesler
by
8.0k points
