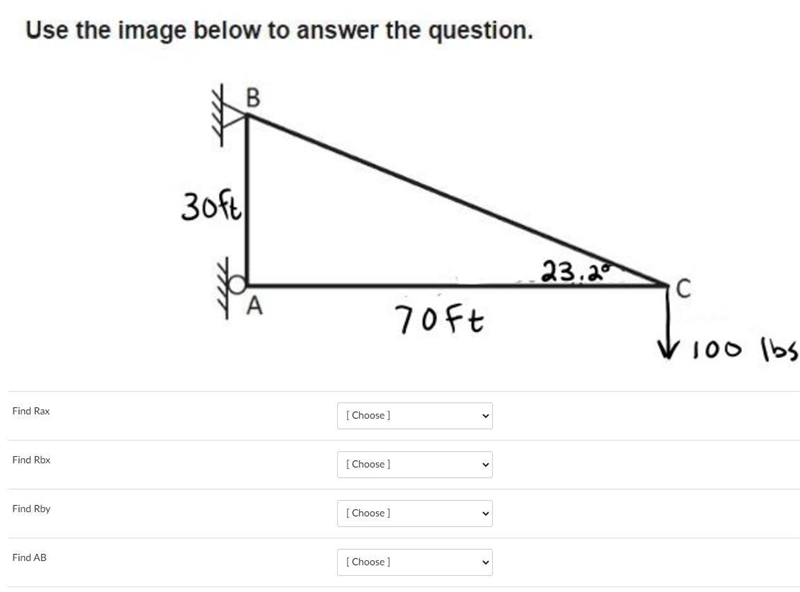

Please help me solve this truss system problem.

Please help me solve this truss system problem.
369 views
0 votes
Please help me solve this truss system problem.

Please help me solve this truss system problem.-example-1
User Rojeeer
by
7.6k points

1 Answer

6 votes

Answer:

1. Always Start by calculating reactions at supports.

2. Make a slice through the members you wish to solve.

3. Treat the half structure as its own static truss.

4. Solve the truss by taking the sum of forces = 0.

5. Take the moment about a node of more than one unknown member.
