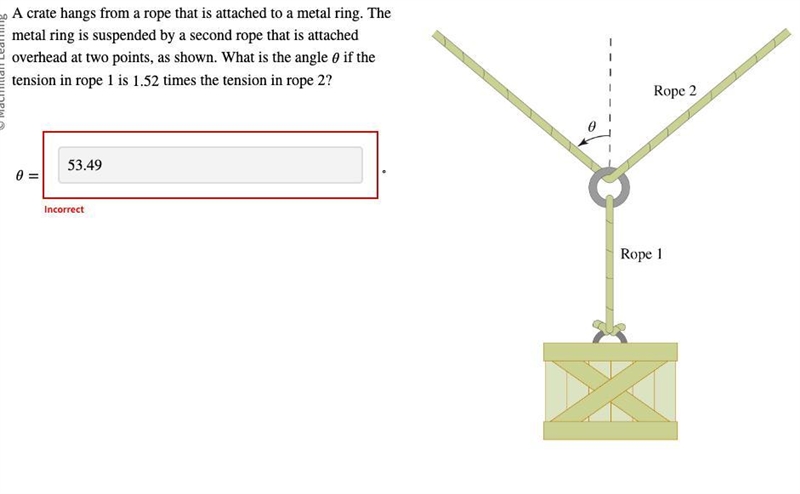

A crate hangs from a rope that is attached to a metal ring. The metal ring is suspended by a second rope that is attached overhead at two points, as shown. What is the angle if the tension in rope 1 is 1.52 times the tension in rope 2?

A crate hangs from a rope that is attached to a metal ring. The metal ring is suspended-example-1
User Tarit Ray
by
7.8k points

2 Answers

2 votes

Step-by-step explanation:

vertical tensions in each side of rope 2

2 x mg cos Φ and this equals 1.52 tension in rope 1

2 x mg cos Φ = 1.52 mg 'divide out ' mg

2 cosΦ = 1.52

cosΦ = 1.52/2

arccos ( 1.52/2) = Φ = 40.5 degrees

User Tony The Lion
by
7.5k points
5 votes

Final answer:

To find the angle between the ropes when the tension in rope 1 is 1.52 times the tension in rope 2, you can set up an equation using the concept of equilibrium and solve for the angle.

Step-by-step explanation:

The angle between the ropes can be found using the concept of equilibrium. Let T1 be the tension in rope 1 and T2 be the tension in rope 2. As per the problem, T1 is 1.52 times T2. Considering the forces acting on the metal ring at the top, we can set up the following equation:

T1 * sin(theta) = T1 + T2 * sin(theta)

By substituting the given ratio 1.52, we can solve the equation to find the angle theta.
