Question

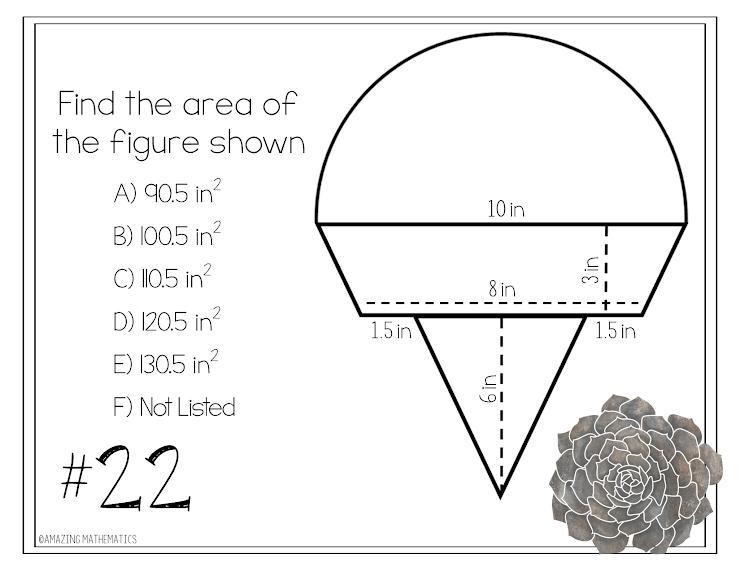

What is the area of the figure shown?

Answer 1

F) not listed

Explanation:

We can break this down into 3 separate shapes

top = semi-circle

middle = trapezoid

bottom = triangle

the area formulas for each are as follows

semi-circle = (1/2)pi r^2 : r = radius

trapezoid = (1/2)h(a+b) : h = height a = top base b = bottom base

triangle = (1/2)bh : b = base h =height

top calculation:

(1/2)pi(5)^2 = (1/2)pi(25) = 39.23

middle calculation:

(1/2)(3)(10+8) = 27

bottom calculation:

1/2(8-1.5-1.5)(6) = 15

39+27+15 = 81 in^2

Answer 2

Semi circle:39.26990817

Trapezoid:27

Triangle:15

Figure:81.26990817

I personally think this is F,unless I did it wrong,was I supposed to multiply the shapes together or add the areas of the shapes together? Even if I multiplied, it would still not be listed....

Explanation:
