Answer:
40 units
Explanation:

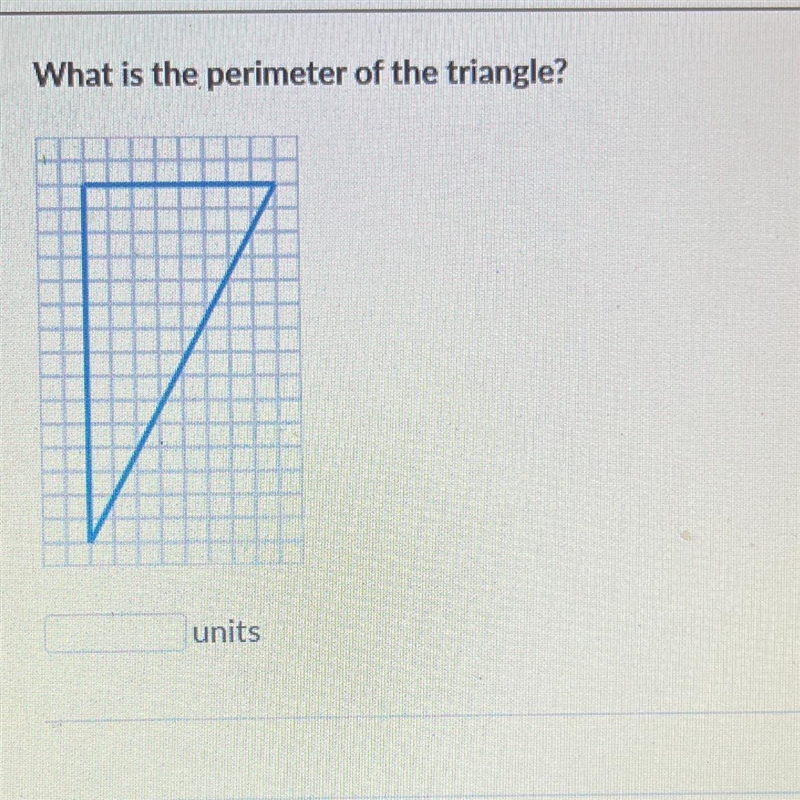

You want the perimeter of the triangle shown in the graph.
Dimensions
You can count the grid squares to find the horizontal and vertical dimensions of the triangle. You find they are 8 units and 15 units, respectively.
The length of the slant side is the hypotenuse of a right triangle with sides 8 and 15. If you don't recognize this {8, 15, 17} Pythagorean triple, you can find the hypotenuse using the Pythagorean theorem:
c² = a² +b²
c² = 8² +15² = 64 +225 = 289
c = √289 = 17
The long side of the triangle is 17 units.
Perimeter
The perimeter of the triangle is the sum of the lengths of its sides:
P = 8 + 15 + 17 = 40
The perimeter is 40 units.
__
Additional comment
A "Pythagorean triple" is a set of three integer side lengths that form a right triangle. The triple is "primitive" if the numbers have no common factor. There are a few Pythagorean triples that regularly show up in algebra, trig, and geometry problems. Some of them are ...
{3, 4, 5}, {5, 12, 13}, {7, 24, 25}, {8, 15, 17}, {9, 40, 41}
You will also see multiples of these, for example, 2·{3, 4, 5} = {6, 8, 10}.
The smallest is {3, 4, 5}, and it is the only set that is an arithmetic sequence (has constant differences between lengths). In every case, the sum of the numbers is even. (A right triangle cannot have integer side lengths and an odd perimeter value.)
