Question

NO LINKS!! URGENT HELP PLEASE!!

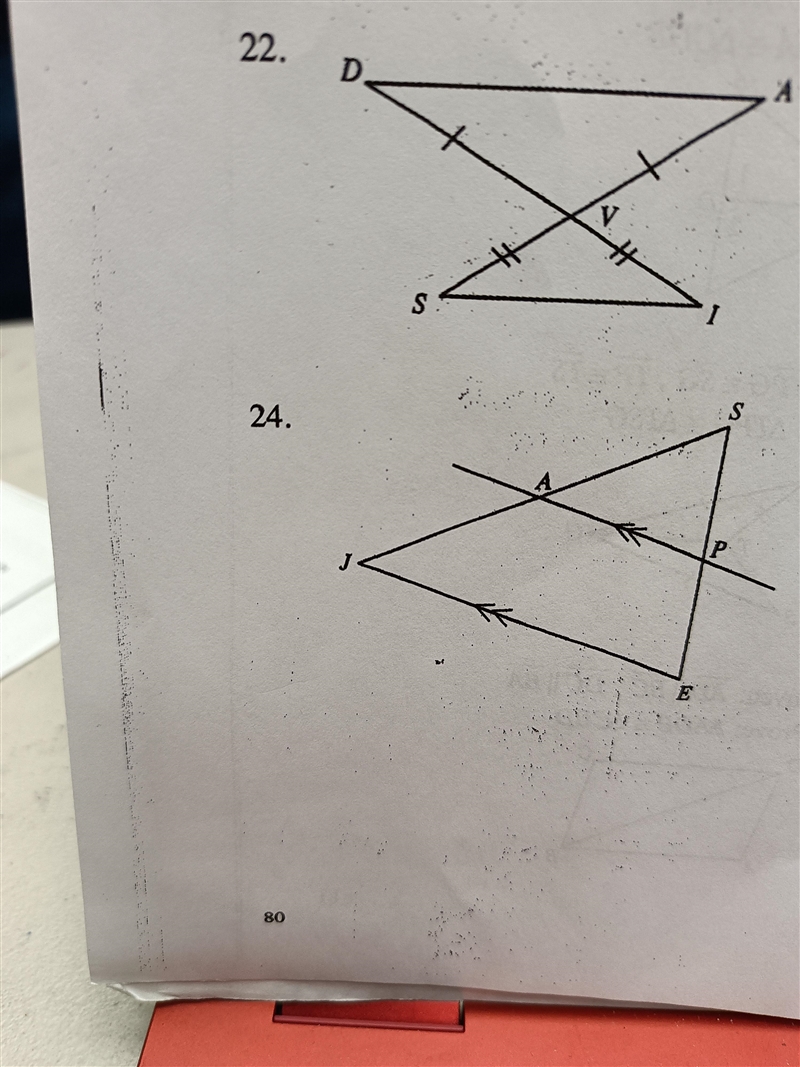

Using the information given in each diagram below, decide if any triangles are congruent, similar but not congruent, or similar. If you claim the triangles are congruent or similar, create a flowchart justifying your answer. Part 1

Please help me with #22 and 24

Answer 1

22. Congruent traingle

24. Similar traingle

We need to compare their corresponding sides and angles to determine if the two triangles are congruent or similar.

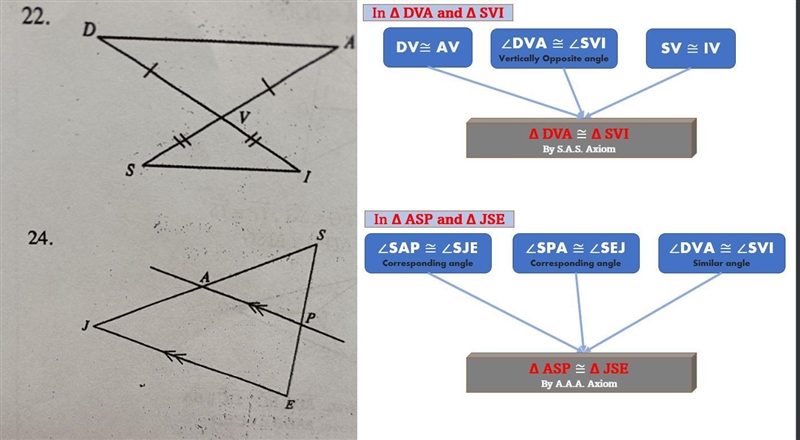

Attached flowchart to help you determine if two triangles are congruent or similar: See Attachment:

Properties of the similar triangle:

1. Corresponding angles are congruent: The corresponding angles of similar triangles are congruent. This means that if we label the corresponding angles of two similar triangles as A, B, and C and A', B', and C', respectively, then angle A is congruent to angle A', angle B is congruent to angle B', and angle C is congruent to angle C'.
2. Corresponding sides are proportional: The corresponding sides of similar triangles are proportional. This means that if we label the corresponding sides of two similar triangles as a, b, and c and a', b', and c', respectively, then a:b::a':b' and b:c::b':c'.
3. Ratios of corresponding sides are equal: The ratios of the corresponding sides of similar triangles are equal. This means that a/b = a'/b' and b/c = b'/c'.
4. Perimeters and areas are proportional: The perimeters of similar triangles are proportional to the ratios of their corresponding sides, and the areas are proportional to the ratios of their corresponding sides squared. For example, if the ratio of the corresponding sides of two similar triangles is 2:3, then the ratio of their perimeters is also 2:3, and the ratio of their areas is 4:9.
5. Height and base are proportional: The height of similar triangles is proportional to the ratios of their corresponding sides. This means that if two similar triangles have heights h and h', respectively, and corresponding sides a and a', then h/h' = a/a'. Similarly, if the triangles have bases b and b', then the ratio of their heights is also b/b'.

Properties of the Congruent Triangle:

1. Corresponding sides and angles are congruent: In congruent triangles, corresponding sides and angles are congruent. This means that if we label the corresponding angles of two congruent triangles as A, B, and C and A', B', and C', respectively, then angle A is congruent to angle A', angle B is congruent to angle B', angle C is congruent to angle C', and side AB is congruent to side A'B', side AC is congruent to side A'C', and side BC is congruent to side B'C'.
2. Congruent triangles have equal perimeters: Congruent triangles have the same size, so their perimeters are equal.
3. Congruent triangles have equal areas: Congruent triangles have the same size, so their areas are equal.
4. The sum of interior angles is always 180 degrees: The sum of the three interior angles of a triangle is always 180 degrees, regardless of whether the triangle is congruent or similar.
5. The altitude, median, and angle bisector of a triangle are also congruent: In congruent triangles, the altitude, median, and angle bisector of one triangle are congruent to the corresponding altitude, median, and angle bisector of the other triangle.
