Question

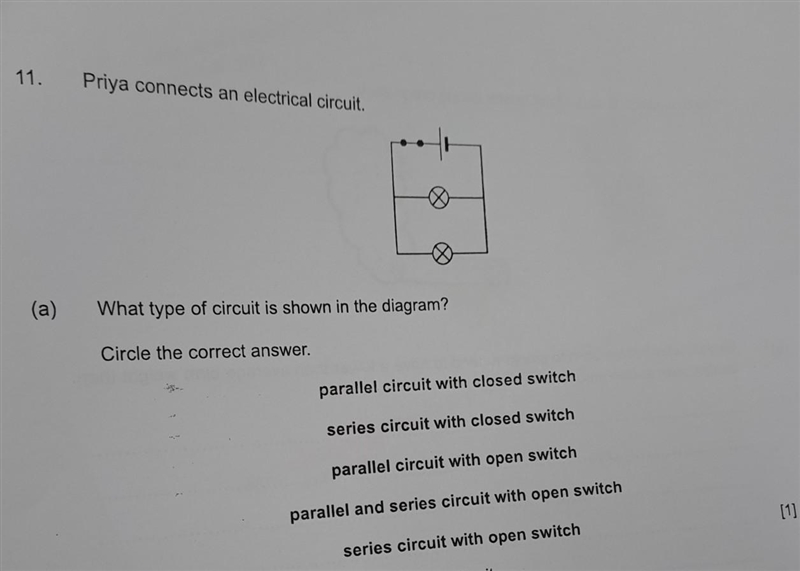

11. (a) Priya connects an electrical circuit. Ø What type of circuit is shown in the diagram? Circle the correct answer. Walls parallel circuit with closed switch series circuit with closed switch parallel circuit with open switch parallel and series circuit with open switch series circuit with open switch​

Answer 1

parallel circuit with switch closed

Step-by-step explanation:

The two circles with X's ( the load) are wired side-by-side ...in parallel.

The switch ( between the two dots at the top) is CLOSED
