3Ω 6 V Fig. 4.31 4 Ω 592 r = 0.5 Ω ) The diagram above (fig. 4.31) shows a 6 V battery of internal resistance 0.5 ohm connected to three resistors of values 3 ohm, 4 ohm, and 5 ohm as shown. Calculate the current in each resistor, the p.d. across the 3 ohm resistor, and across the parallel resistors.​

User Reubano
by
8.6k points

1 Answer

5 votes

Step-by-step explanation:

I am going to sign off....here is a possible scenario:

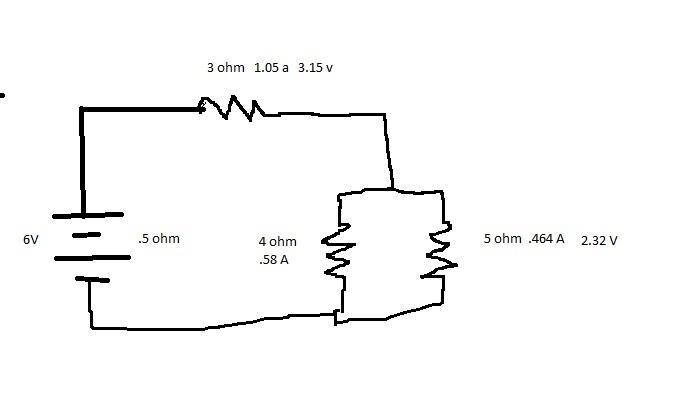

Current thru 3 ohm = 1.05 Amp V3 = 3.15 V Current through 4 ohm = .58 A through 5 ohm = .464 A (voltage across these two resistors is 2.32 v )

3Ω 6 V Fig. 4.31 4 Ω 592 r = 0.5 Ω ) The diagram above (fig. 4.31) shows a 6 V battery-example-1
