Use the graphical method to solve the following LP problem. Minimize Z=3x+2y Subject to the constraints 5x+y ≥ 10 x+y 26 x+4y ≥ 12 and x,y ≥ 0.​

User Jvnill
by
8.0k points

1 Answer

7 votes

The maximum value of the objective function is 9.65 at the feasible point (1.47, 2.62)

How to find the maximum value of the objective function

From the question, we have the following parameters that can be used in our computation:

Max z = 3x + 2y

Subject to:

5x + y ≥ 10

10x + y ≥ 6

x + 4y ≥ 12

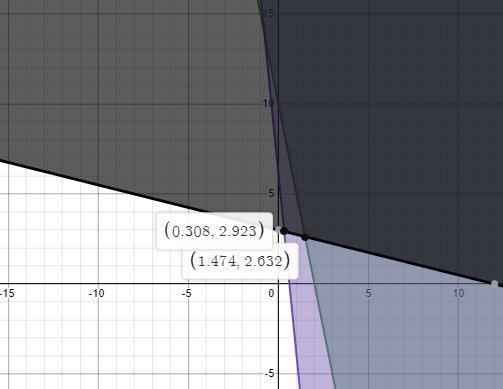

Plot the graph of the constraints (see attachment)

From the graph, we have the feasible coordinates to be

(x, y) = (0.31, 2.92) and (1.47, 2.62)

Recall that

Max z = 3x + 2y

So, we have

z(0.31, 2.92) = 3 * 0.31 + 2 * 2.92 = 6.77

z(1.47, 2.62) = 3 * 1.47 + 2 * 2.62 = 9.65

The maximum of these values is 9.65

Hence, the maximum value of the objective function is 9.65

Use the graphical method to solve the following LP problem. Minimize Z=3x+2y Subject-example-1
