41. What is the total resistance in the following circuit? *

9 V
a. 100 ohms
100 S2
b. 300 ohms
c. 50 ohms
R₁
ww
d. 450 ohms
R₂
www
300 S2
R₂
www
50 52

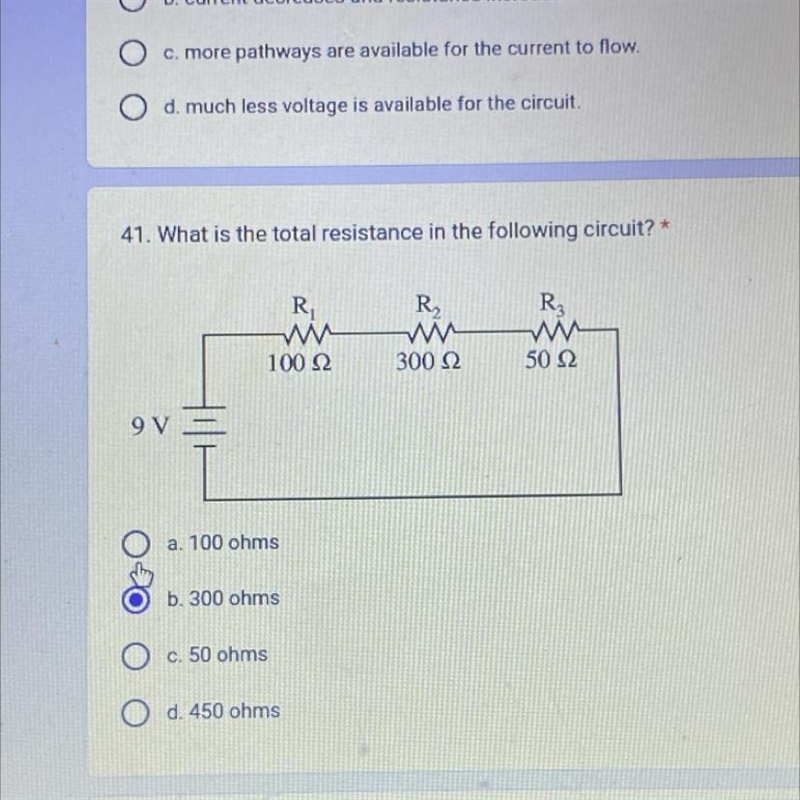

41. What is the total resistance in the following circuit? * 9 V a. 100 ohms 100 S-example-1
User Kristinn
by
7.9k points

1 Answer

5 votes

The total resistance of the circuit is determined as 450 Ω. (Option D).

How to calculate the total resistance of the circuit?

The total resistance of the circuit is calculated by applying the following formula as shown below.

Rt = R₁ + R₂ + R₃

where;

  • R₁ is the value of resistance 1
  • R₂ is the value of resistance 2
  • R₃ is the value of resistance 3

The given parameters include;

R₁ = 100 Ω

R₂ = 300 Ω

R₃ = 50 Ω

Rt = R₁ + R₂ + R₃

Rt = 100 Ω + 300 Ω + 50 Ω

Rt = 450 Ω
