Question

Using the step-by-step mapping process, create a relational schema from the ER diagram below. Your schema should identify all primary keys and foreign keys. Use the standard format for logical relational schemas as covered in class. An example of the standard format is on the next page. Hand-written submissions will not be accepted.

Answer 1

The step-by-step mapping process from the given ER diagram results in a relational schema. This schema includes the identification of primary keys and foreign keys for each table.

Step-by-step explanation:

The step-by-step mapping process involves transforming entities, relationships, and attributes from the ER diagram into tables, columns, primary keys, and foreign keys in a relational schema. Each entity becomes a table, each attribute becomes a column, and each relationship becomes a foreign key.

Identifying Primary Keys: For each table, one or more attributes uniquely identifying each record become the primary key.

Identifying Foreign Keys: In tables associated with relationships, attributes referencing the primary key of another table become foreign keys.

The resulting relational schema provides a structured representation of the data model derived from the original ER diagram, facilitating efficient data organization and retrieval.

"

Complete Question

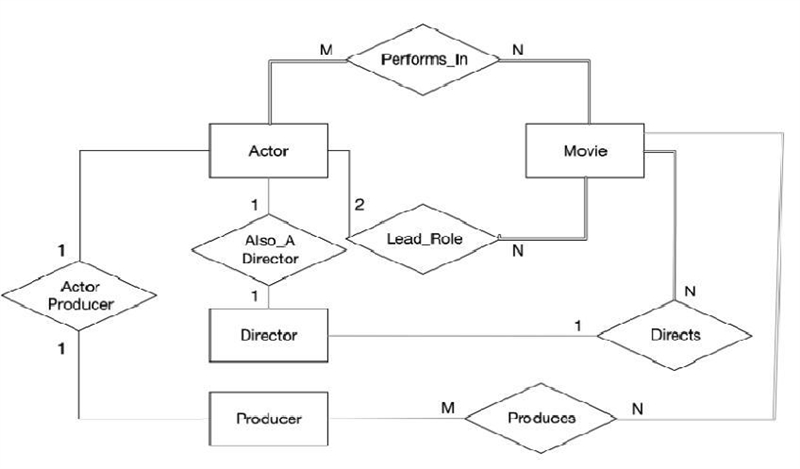

Using the step-by-step mapping process, create a relational schema from the ER diagram below. Your schema should identify all primary keys and foreign keys.

"
