Question

For each of the circuit elements that can be found on the left-hand side of the simulator, describe them and explain what you think each of them are for. circuit element description purpose wire battery light bulb switch fuse resistor b. underneath the lefthand panel, select the symbol that looks like this: draw in the symbol for each circuit element. wire battery light bulb switch fuse resistor i. what do you notice about the symbols for the other items (coin, dog, hand, etc.), and why do you think this is the case

Answer 1

The circuit elements that can be found on the left-hand side of the simulator and their description is shown below

What are the circuit elements?

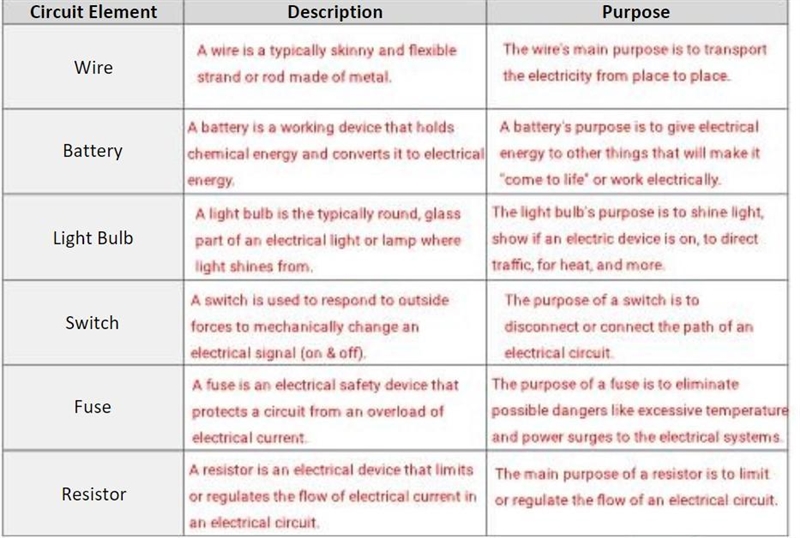

Circuit Element Description Purpose

1. Wire- A skinny and flexible strand or rod made of metal. The wire's main purpose is to transport the electricity from place to place.
2. Battery -A working device that holds chemical energy and converts it to electrical energy to other things that will make it come to life or work electrically. A battery's purpose is to give electrical energy to other things that will make it "come to life" or work electrically.
3. Light Bulb- The round, glass part of an electrical light or lamp where light shines from. The light bulb's purpose is to shine light, show if an electric device is on, to direct traffic, for heat, and more.
4. Switch- Used to respond to outside forces to mechanically change an electrical signal (on & off). The purpose of a switch is to disconnect or connect the path of an electrical circuit.
5. Fuse- An electrical safety device that protects a circuit from an overload of electrical current. The purpose of a fuse is to eliminate possible dangers like excessive temperature and power surges to the electrical systems.
6. Resistor- An electrical device that limits or regulates the flow of electrical current in an electrical circuit. The main purpose of a resistor is to limit or regulate the flow of an electrical circuit.
