Question

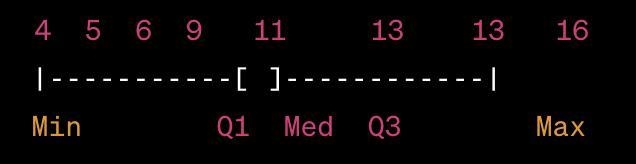

Answer the statistical measures and create a box and whiskers plot for the following set of data.

Min q1 med q3 max

Answer 1

The smallest value is 4 and the largest value is 16

Let's start by organising the given data set:

4,5,6,9,11,13,13,16

Now, let's calculate the requested statistical measures:

Minimum (Min): The smallest value is 4.

First Quartile (Q1): The 25th percentile, which is the average of the 2nd and 3rd terms

`(5+6)/(2)`=5.5

Median (Med): The middle value of the ordered data set. Since there are 8 values, it's the average of the 4th and 5th terms.

`(9+11)/(2)`=10

Third Quartile (Q3): The 75th percentile, which is the average of the 6th and 7th terms.

`(13+13)/(2)`=13

Maximum (Max): The largest value is 16.

The smallest value is 4 and the largest value is 16

Question:
For the following set of data.

4,5,6,9,11,13,13,16

Answer the statistical measures and create a box and whiskers plot for the following set of data. Min q1 med q3 max
