Draw the circuit Picture of questions below Please please help
223k views
1 vote
Draw the circuit

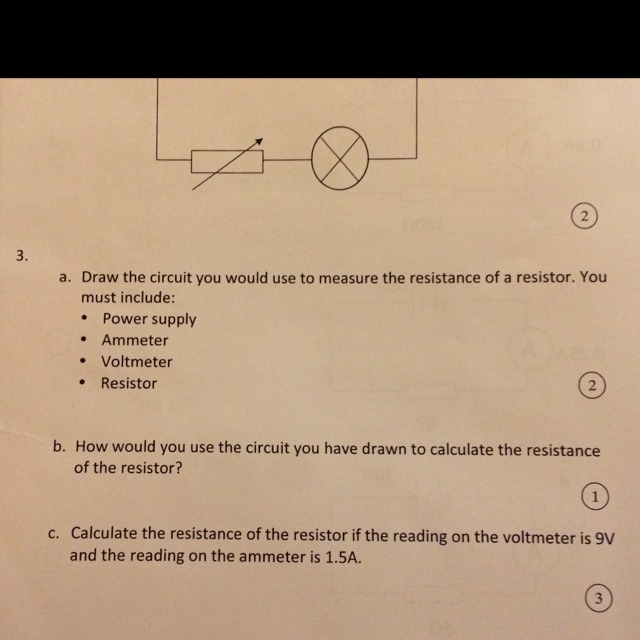

Picture of questions below
Please please help

Draw the circuit Picture of questions below Please please help-example-1
User Dawud
by
7.8k points

1 Answer

6 votes

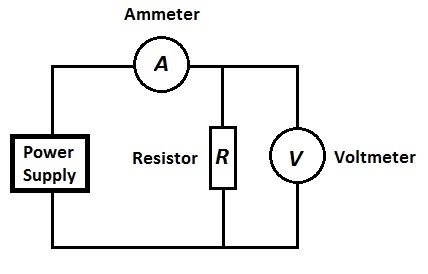

a). The diagram of the circuit is attached.

b). The resistance of the resistor, in unit of ' ohms ', is

(Voltmeter reading in volts) / (Ammeter reading in amperes) .


Draw the circuit Picture of questions below Please please help-example-1
