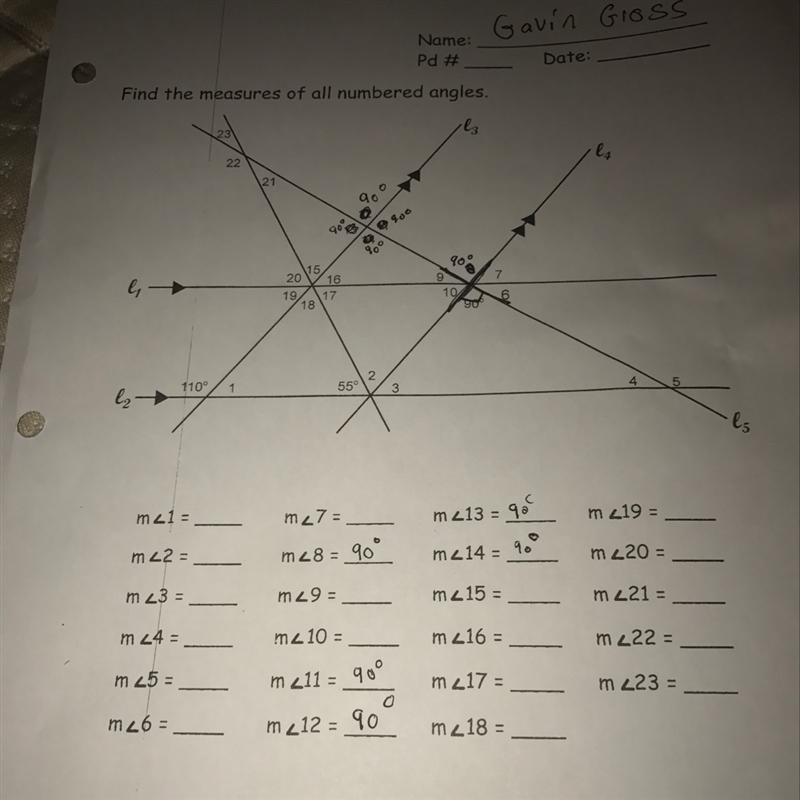

Help me find the measures

Help me find the measures-example-1
User Eonema
by
8.1k points

2 Answers

2 votes

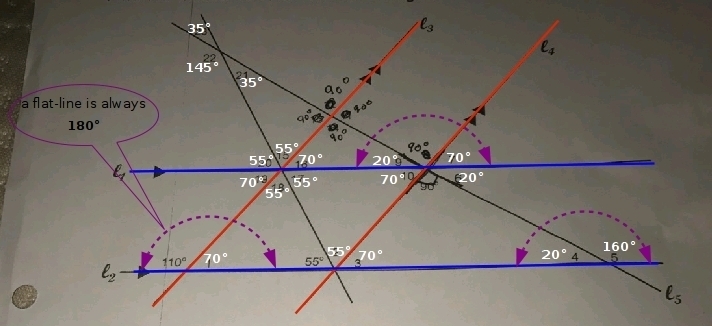

check the picture below.

recall that all interior angles in a triangle, add up to 180°.

how did we get angle 21? well, 180 - 90 - 55.

and angle 23 is a vertical angle of 21, thus equal.

now, a circle has a total of 360°, so, if we take out angles 21 and 23, so 70° from 360°, we're left with 290°, two equal, vertical, angles for 290° will be 145° each, thus angle 22 is 145°.

how did we get say angle 7? well, angle 7 is corresponding angle to angle 3, and thus equals.

how did we get angle 6? well, 180 - 70 - 90.
Help me find the measures-example-1
User MaNKuR
by
8.1k points
6 votes
1) 70
18) 60
15) 60
3) 55
2) 70
User Nmunson
by
8.0k points
