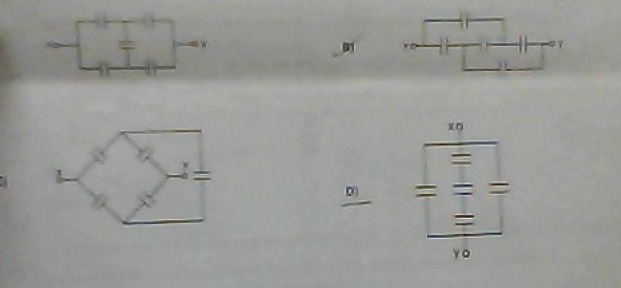

four ways of making a network of five capacitors of the same value are shown here. three out of four are identical. the one which is different is

explain your answer

Please help. four ways of making a network of five capacitors of the same value are-example-1
User Izrik
by
7.5k points

1 Answer

2 votes
This is a tough one.
In A, B, and C, there are various routes to get from one end to the other end through 2 or 3 capacitors.
D is the only configuration where it's possible to get from one end to the other through only 1 of them.
I'm not totally confident, but I think D is the one that's not like the others.
