Quadrilateral OPQR is inscribed in circle N, as shown below. What is the measure of ∠ROP?

41
67
113
139

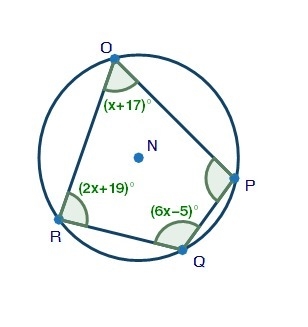

Quadrilateral OPQR is inscribed in circle N, as shown below. What is the measure of-example-1

2 Answers

5 votes
The answer is 41, because I just took the quiz and that was the correct answer :)
User Hadiyah
by
8.8k points
0 votes

Answer: The correct option is (A) 41°.

Step-by-step explanation: Given that quadrilateral OPQR is inscribed in circle N as shown in the figure.

Also, ∠ROP = (x+17)° and ∠RQP = (6x-5)°.

We are to find the measure of ∠ROP.

Since quadrilateral OPQR is inscribed in a circle, so it is a cyclic quadrilateral.

We know that the sum of the measures of opposite angles of a cyclic quadrilateral is 180°.

So, in cyclic quadrilateral OPQR, we have


m\angle ROP+m\angle RQP=180^\circ\\\\\Rightarrow (x+17)^\circ+(6x-5)^\circ=180^\circ\\\\\Rightarrow (7x+12)^\circ=180^circ\\\\\Rightarrow 7x^\circ=168^\circ\\\\\Rightarrow x^\circ=\left((168)/(7)\right)^\circ\\\\\Rightarrow x^\circ=24^\circ.

Therefore, we get


m\angle ROP=(x+17)^\circ=(24+17)^\circ=41^\circ.

Thus, the measure of angle ROP is 41°.

Option (A) is CORRECT.
