How to find the missing angles

How to find the missing angles
134k views
3 votes

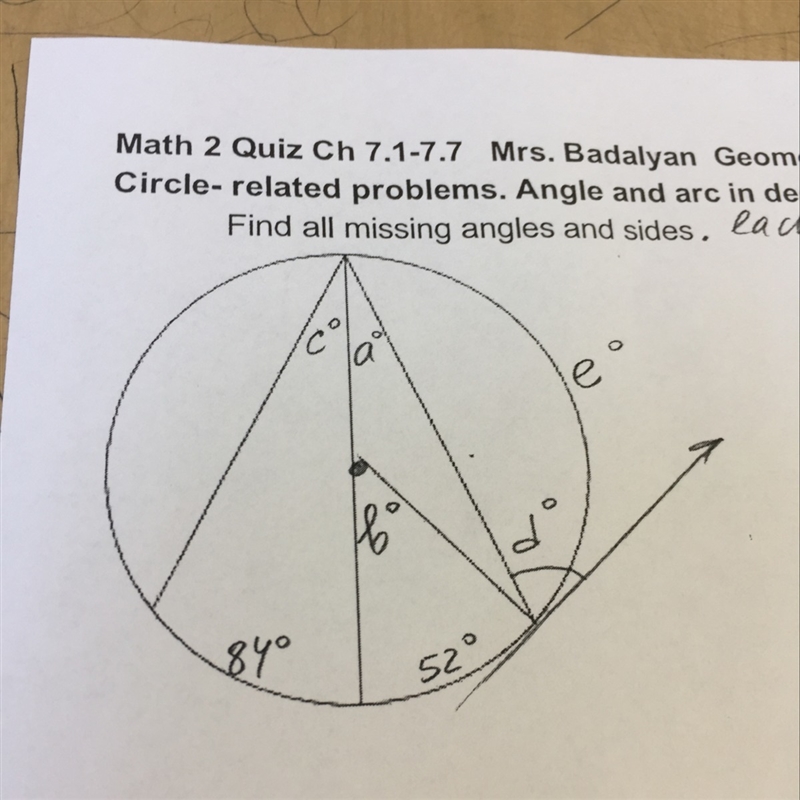

How to find the missing angles

How to find the missing angles-example-1
User Jakub Synowiec
by
8.2k points

1 Answer

2 votes

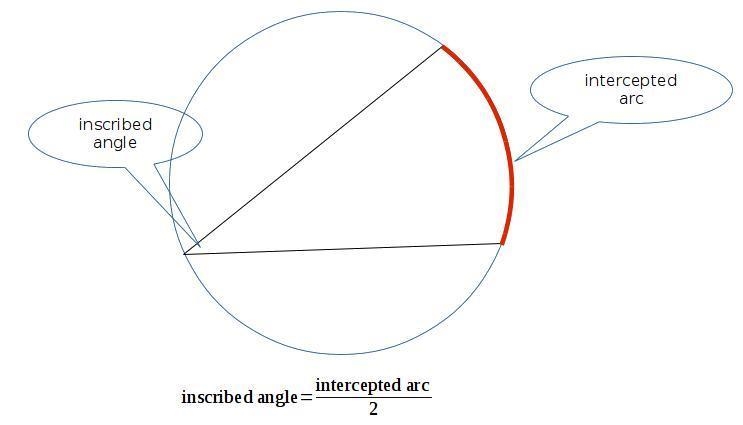

check the first picture below, that's the "inscribed angle theorem", as you'd already know

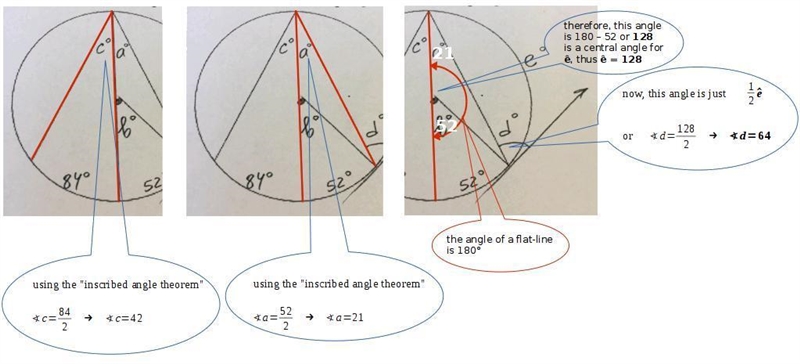

now, check the second picture
How to find the missing angles-example-1
How to find the missing angles-example-2
User Owen Blacker
by
8.1k points
