Question

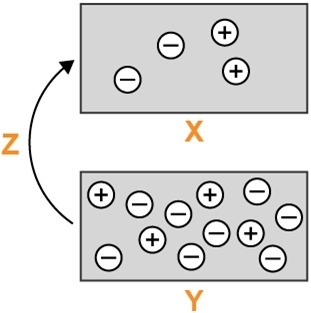

Look at the diagram showing resistance and flow of electrons.

Which labels best complete the diagram?

A.
 X: High resistance
Y: Low resistance
Z: Flow of electrons

B.
 X: Low resistance
Y: Flow of electrons
Z: High resistance

C.
 X: Flow of electrons
Y: High potential energy
Z: Low potential energy

D.
 X: Low potential energy
Y: High potential energy
Z: Flow of electrons

Answer 1

the answer is D, I took the quiz rn

Answer 2

The answer would be:

D.

X: Low potential energy

Y: High Potential energy

Z: Flow of electrons

Z is clearly the flow of electrons, as shown by the arrow demonstrating the direction of the flow. So you can easily cross out choices B and C. Now, you can see that Y has more energy stored and X has a lot less, so you can conclude that Y has high potential energy while X has low potential energy.
