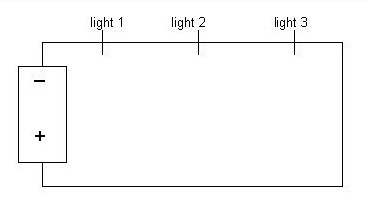

What type of circuit is this?

a

Question 1 options:

electromagnet


series


transverse


parallel

What type of circuit is this? a Question 1 options: electromagnet series transverse-example-1

2 Answers

1 vote
Its a series circuit, all the elements are connected in series with the active source and same amount of current will flow through all the elements
User Keira Nighly
by
8.4k points
4 votes
the answer is A. series. Because u there is only one way the electric current is traveling in all the same direction. so A. series is your answer. hope this helps and enjoy:)
User Tobias Cohen
by
8.6k points
