Which of the following is the equivalent resistance of the circuit shown? 12 Ω 4.17 Ω 8.3 Ω 5.5 Ω
207k views
3 votes

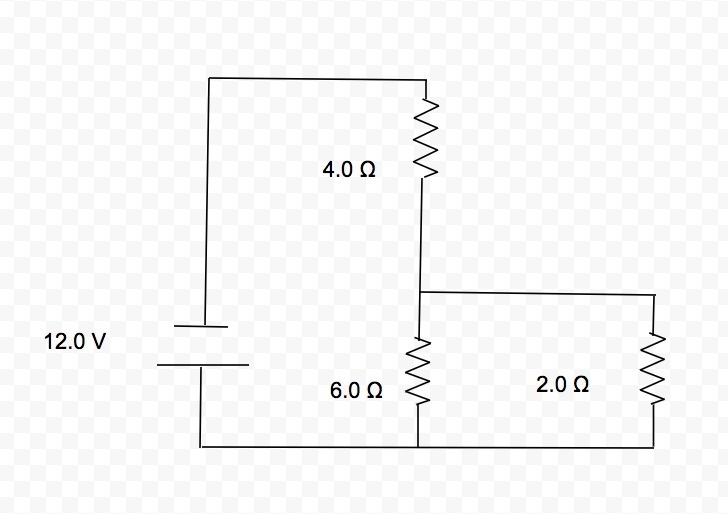

Which of the following is the equivalent resistance of the circuit shown?

12 Ω
4.17 Ω
8.3 Ω
5.5 Ω

Which of the following is the equivalent resistance of the circuit shown? 12 Ω 4.17 Ω 8.3 Ω 5.5 Ω-example-1
User Aifuwa
by
8.1k points

1 Answer

6 votes
I believe the answer is going to B I hope this helps and good luck
User RajuGT
by
8.4k points
