Use phasor techniques to find an expression for i(t) expressed as a single cosine function, where i(t)=[250cos(377t+30∘)−150sin(377t+140∘)] ma

User Ankuj
by
8.2k points

1 Answer

2 votes

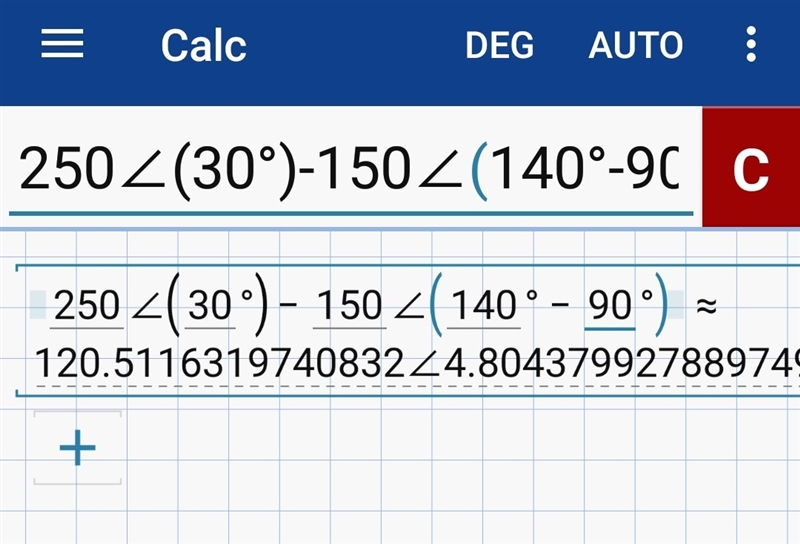

Using your favorite vector calculator, you can add
.. 250∠30° -150∠(140°-90°)
to get the sum
.. 120.512∠4.804°

Then i(t) = 120.512cos(377t +4.804°) ma

____

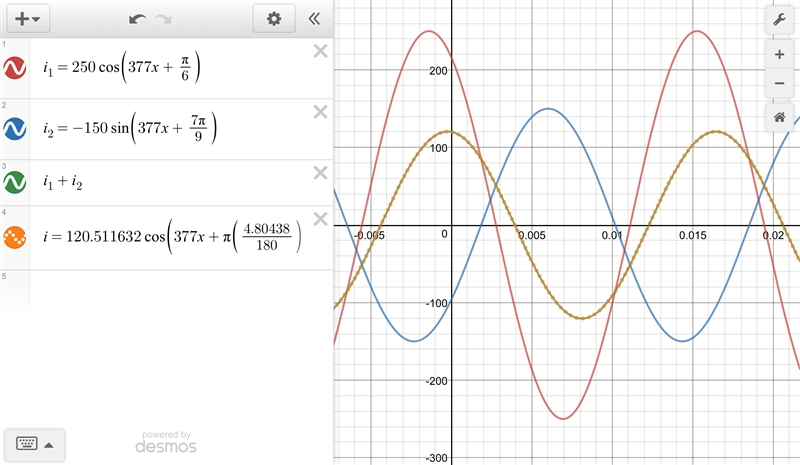

The graph shows the individual currents, their sum, and the cosine function above, demonstrating that this is the solution.
Use phasor techniques to find an expression for i(t) expressed as a single cosine-example-1
Use phasor techniques to find an expression for i(t) expressed as a single cosine-example-2
