Question

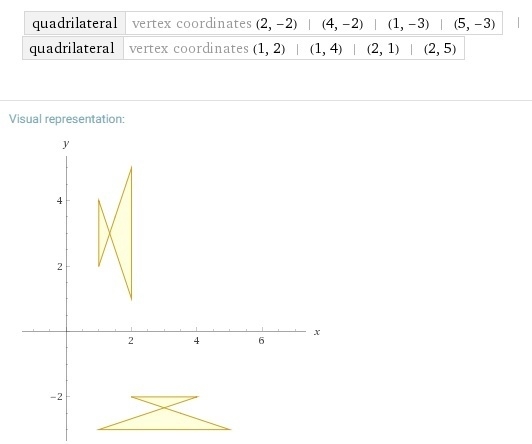

Polygons ABCD and A'B'C'D' are shown on the following coordinate grid:A coordinate grid is shown from positive 6 to negative 6 on the x-axis and from positive 6 to negative 6 on the y-axis. A polygon ABCD is shown with vertex A on ordered pair 2, negative 2, vertex B on ordered pair 4, negative 2, vertex C on ordered pair 1, negative 3 and vertex D on ordered pair 5, negative 3. A polygon A prime B prime C prime D prime is shown with vertex A prime on ordered pair 1, 2 , vertex B prime on ordered pair 1, 4, vertex C prime on ordered 2, 1 and vertex D prime on ordered pair 2, 5.

What set of transformations is performed on ABCD to form A'B'C'D'?

Answer 1

A(2, -2), B(4, -2), C(1, -3), D(5, -3).

A'(1, 2), B'(1, 4), C'(2, 1), D'(2, 5)

That looks like a rotation 90 degrees around the origin then a translation.

Let's do the rotation ABCD->A"B"C"D"

The rotation is (x,y)->(-y,x)

A"(2, 2), B"(2,4), C"(3,1), D"(3,5).

Compare to

A'(1, 2), B'(1, 4), C'(2, 1), D'(2, 5)

we need to translate one unit to the left.

Answer: 90 degree rotation around the origin then translation by (-1,0)
