Question

How to draw use case diagram

When an applicant requests to register for a course, an officer from student affairs verifies whether he/she has relevant entry qualifications and paid the fees. If certificates to show entry qualifications are not brought the applicant is asked to bring them and return. If the fees are not paid the applicant is directed to the finance division to make the payment and come. To register for a course, the system checks whether the course prerequisites are satisfied and let the student register for the particular course.

A student is given a student ID number and a registration number for the particular programme. All courses have unique course codes, titles, credit ratings and a set of pre-requisites.

how to draw use case diagram

Answer 1

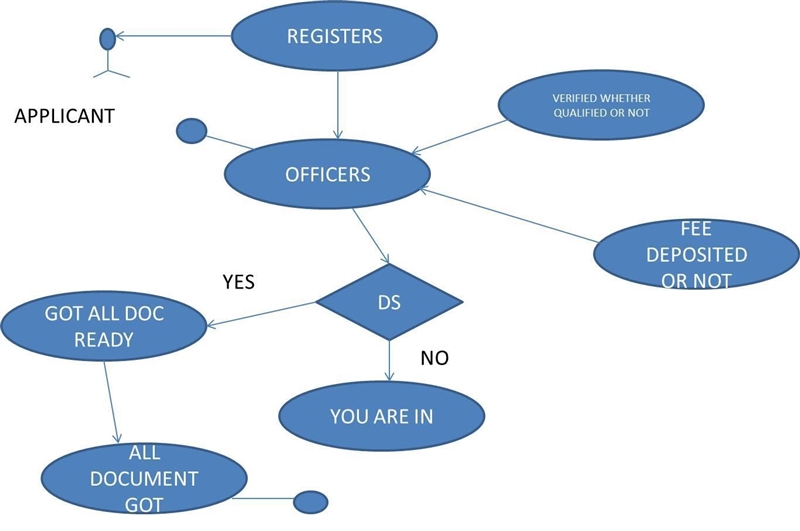

Please check the attachment.

Step-by-step explanation:

The diagram is self explanatory. Simple language has been used. And each issue has been covered. The applicant registers, and the officer checks. Rest part is self explanatory. And if the documents are not complete or clear then the officer asks the applicant to bring the complete papers.
