22.5-4. Minimum Liquid Flow in a Packed Tower. The gas stream from a chemical reactor contains 25 mol % ammonia and the rest are inert gases. The total flow is 181.4 kg mol/h to an absorption tower at
225k views
2 votes
22.5-4. Minimum Liquid Flow in a Packed Tower. The gas stream from a chemical reactor contains 25 mol % ammonia and the rest are inert gases. The total flow is 181.4 kg mol/h to an absorption tower at 303 K and 1.013 × 105 Pa pressure, where water containing 0.005 mol frac ammonia is the scrubbing liquid. The outlet gas concentration is to be 2.0 mol % ammonia. What is the minimum flow L min ⁡ ′ Using 1.5 times the minimum, plot the equilibrium and operating lines. Ans. L min ⁡ ′ = 262.6kg mol/h

User Tyeomans
by
8.3k points

1 Answer

4 votes

Answer:

check attachments for answers

Step-by-step explanation:

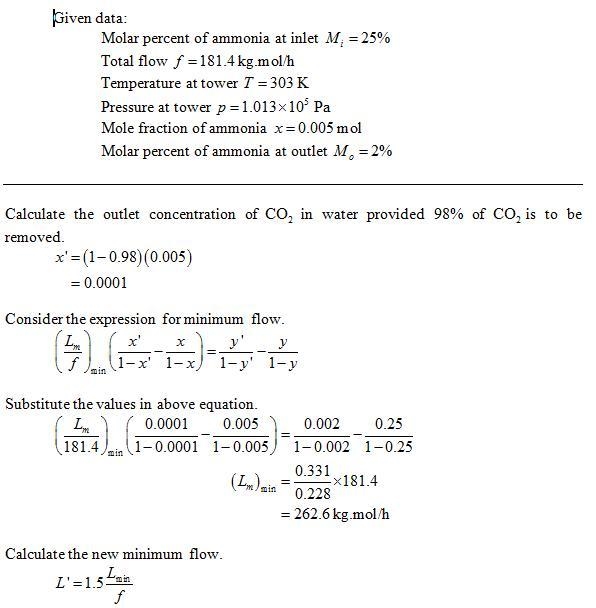

22.5-4. Minimum Liquid Flow in a Packed Tower. The gas stream from a chemical reactor-example-1

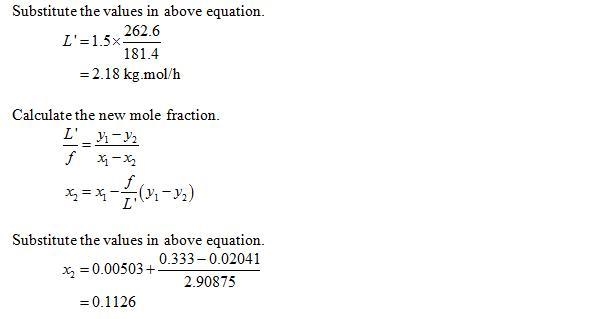

22.5-4. Minimum Liquid Flow in a Packed Tower. The gas stream from a chemical reactor-example-2

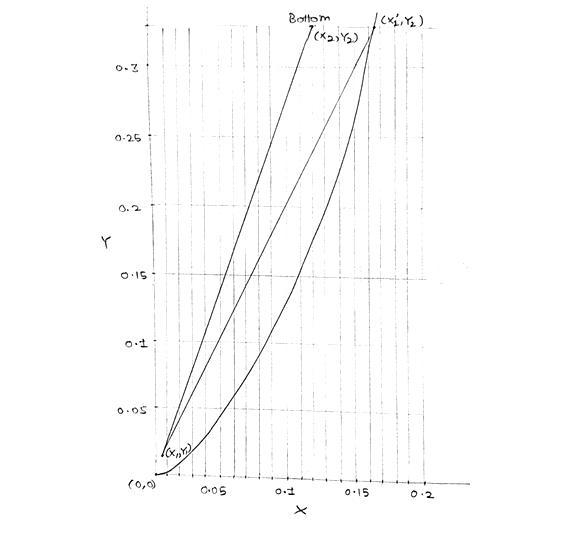

22.5-4. Minimum Liquid Flow in a Packed Tower. The gas stream from a chemical reactor-example-3
User TinyTimZamboni
by
8.1k points
