Draw and write shear strain equation

1 Answer

2 votes

Answer:


\phi =(\Delta L)/(h)

Step-by-step explanation:

Normal strain :

It is the ratio of deformation to the original dimension.Normal strain occurs due to longitudinal force.

Normal strain = ΔL/L

Shear strain:

It is the ratio of deformation to perpendicular dimension.Shear strain occurs due to tangential force.

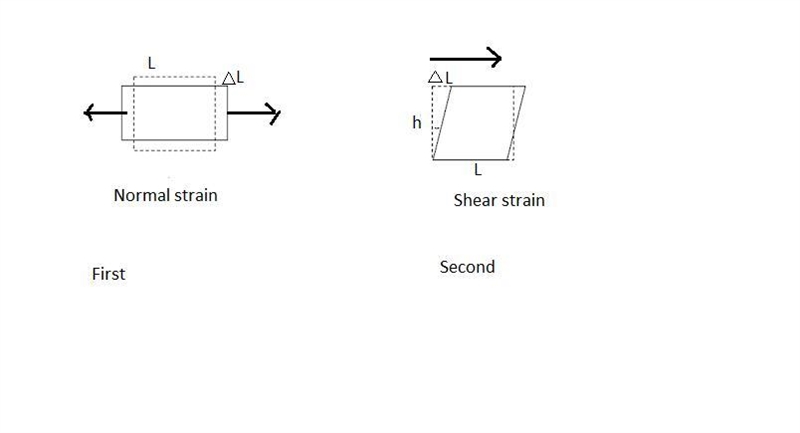

From the second diagram:


tan\phi =(\Delta L)/(h)

if angle Φ is small then we can write


tan\phi =\phi

So


\phi =(\Delta L)/(h)

This is the shear strain equation.

Draw and write shear strain equation-example-1
