In a four bar mechanism, L, is a fixed link; L2 is driver crank; L3 is coupler and L4 is follower crank. L=27 cm, L3 =5 cm and L4=10 mm. Find the length of the link L1 if the linkage can be classified as a double rocker mechanism:

1 Answer

7 votes

Answer:


L_1>32 cm

Step-by-step explanation:

Given that


L_2=27 cm


L_3=5 cm


L_4=10 cm

Here shortest link is link3

To make the linkage as a double rocker mechanism we have to fix longest link that link is link1

So for double rocker mechanism


L_3+L_1>L_2+L_4

Now put the values


5+L_1>27+10


L_1>32 cm

It means that length of link1 should be greater than 32 cm.

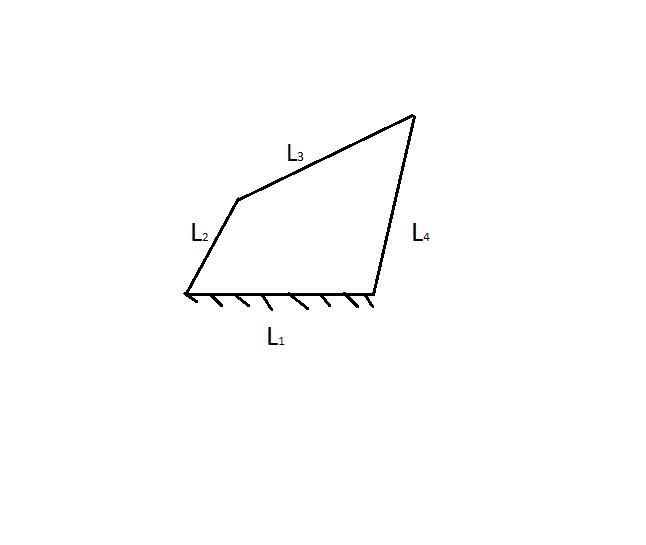

In a four bar mechanism, L, is a fixed link; L2 is driver crank; L3 is coupler and-example-1
