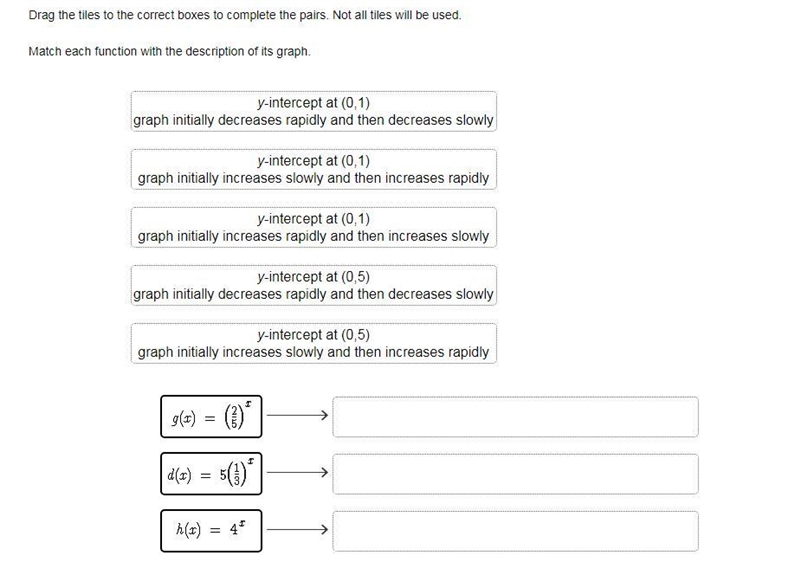

Drag the tiles to the correct boxes to complete the pairs. Not all tiles will be used.

Match each function with the description of its graph.

Drag the tiles to the correct boxes to complete the pairs. Not all tiles will be used-example-1

2 Answers

1 vote

Explanation:

g(x)=(2/5)^x ---> y intercept (0,1). decreases rapidly then decreases slowly

d(x)=5(1/3)^x ---> y intercept (0,5). decreases rapidly then decreases slowly

h(x)=4^x ---> y intercept (0,1). increases slowly then rapidly

User Yuez
by
7.8k points
5 votes

Answer:

Part 1)
g(x)=(2)/(5)^(x) ----> y-intercept at (0,1)

The graph initially decreases rapidly and then decreases slowly

Part 2)
d(x)=5((2)/(5))^(x) ----> y-intercept at (0,5)

The graph initially decreases rapidly and then decreases slowly

Part 3)
h(x)=4^(x) ----> y-intercept at (0,1)

The graph initially increases slowly and then increases rapidly

Explanation:

we know that

The y-intercept is the value of y when the value of x is equal to zero

Part 1) we have


g(x)=(2)/(5)^(x)

Find the y-intercept

For x=0


g(0)=(2)/(5)^(0)=1

The y-intercept is the point (0,1)

using a graphing tool

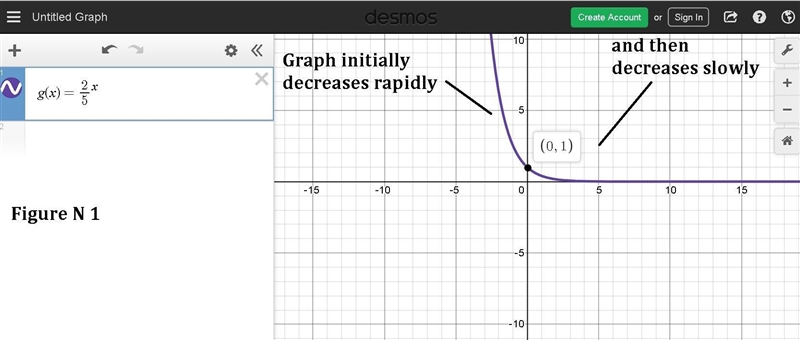

see the attached figure N 1

therefore

y-intercept at (0,1)

The graph initially decreases rapidly and then decreases slowly

Part 2) we have


d(x)=5((2)/(5))^(x)

Find the y-intercept

For x=0


d(0)=5((2)/(5))^(0)


d(0)=5(1)=5

The y-intercept is the point (0,5)

using a graphing tool

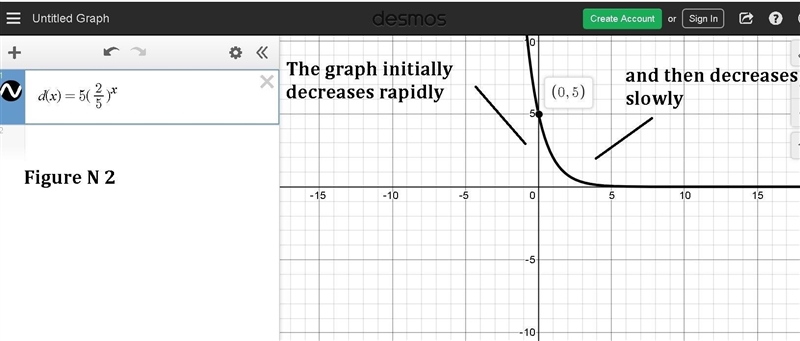

see the attached figure N 2

therefore

y-intercept at (0,5)

The graph initially decreases rapidly and then decreases slowly

Part 3) we have


h(x)=4^(x)

Find the y-intercept

For x=0


h(0)=4^(0)=1

The y-intercept is the point (0,1)

using a graphing tool

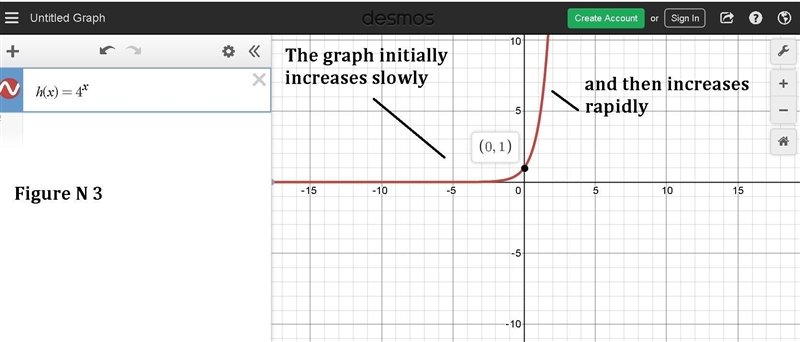

see the attached figure N 3

therefore

y-intercept at (0,1)

The graph initially increases slowly and then increases rapidly

Drag the tiles to the correct boxes to complete the pairs. Not all tiles will be used-example-1
Drag the tiles to the correct boxes to complete the pairs. Not all tiles will be used-example-2
Drag the tiles to the correct boxes to complete the pairs. Not all tiles will be used-example-3
User Theodoros Klikas
by
8.4k points
