What is the effective resistance between the points A and D? A) 1.3 Ω B) 2.2 Ω C) 10 Ω D) 12 Ω

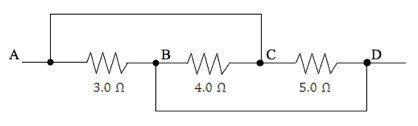

What is the effective resistance between the points A and D? A) 1.3 Ω B) 2.2 Ω C) 10 Ω D-example-1
User Cgotberg
by
8.1k points

1 Answer

5 votes

Answer:

D

Step-by-step explanation:

The resistors are in series (lined up in a row). So the overall resistance is the sum:

R = 3.0 Ω + 4.0 Ω + 5.0 Ω

R = 12 Ω

Answer is D.
