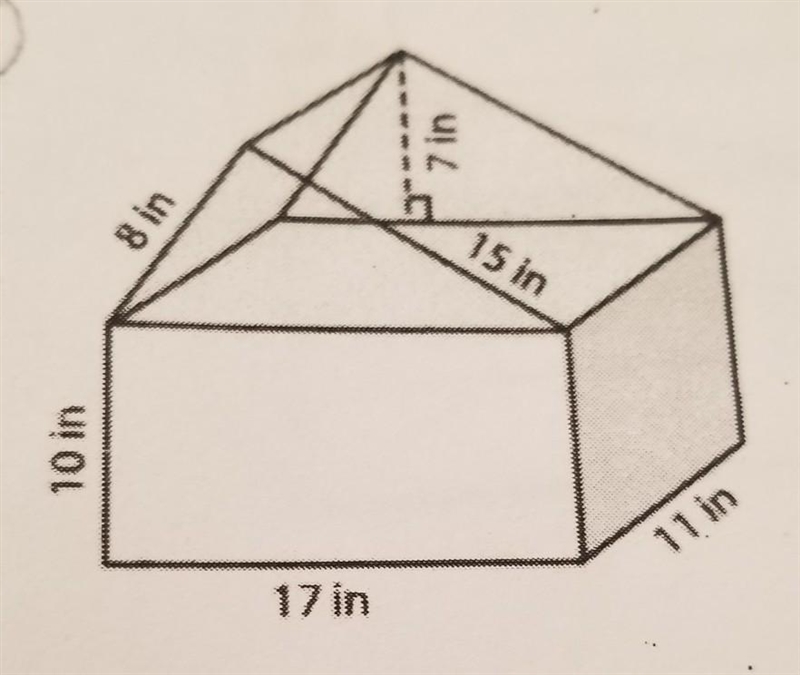

Find the surface area of the figure


Find the surface area of the figure ​-example-1
User Karruma
by
7.8k points

1 Answer

3 votes

Answer:


\large\boxed{S.A.=1,119\ in^2}

Explanation:

We have:

two triangles with base b = 17in and height h = 7in

two rectangles with length l = 17in and width w = 10in

two rectangles with length l =11in and width w = 10in

one rectangle with length l = 8in and width w = 11in

one rectangle with length l = 15in and width w = 11in

one rectangle with length l = 17in and width w = 11in

The formula of an area of a triangle:


A_\triangle=(bh)/(2)

b - base

h - height

The formula of an area of a rectangle:


A_{\boxed{\ }}=lw

l - length

w - width

Calculate:


A_\triangle=((17)(7))/(2)=59.5\ in^2\\\\A_1=(17)(10)=170\ in^2\\\\A_2=(11)(10)=110\ in^2\\\\A_3=(8)(11)=88\ in^2\\\\A_4=(15)(11)=165\ in^2\\\\A_5=(17)(11)=187\ in^2

The Surface Area:


S.A.=2A_triangle+2A_1+2A_2+A_3+A_4+A_5

Substitute:


S.A.=2(59.5)+2(170)+2(110)+88+165+187=1,119\ in^2
