Question

Help wit these questions someone.

Answer 1

In series circuit, Req = R₁ + R₂ + R₃ + ···

In parallel circuit,
`(1)/(Req)  = (1)/(R1) + (1)/(R2) + (1)/(R3) +...`

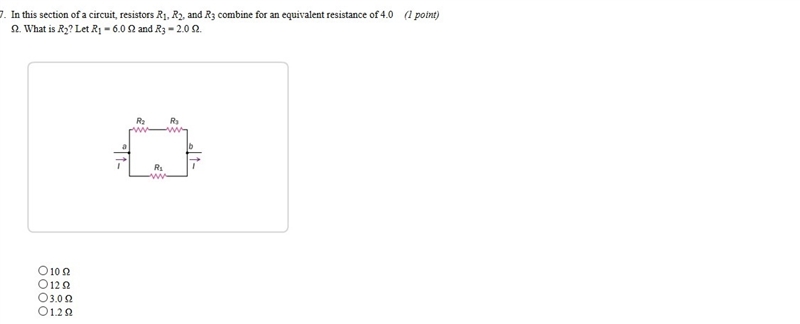

Q7.

total resistance in the upper branch = R₂ + R₃ = R₂ + 2

`(1)/(Req) = (1)/(R2+R3) + (1)/(R1)`

`(1)/(4) = (1)/(R2+2) +(1)/(6)`

R₂ + 2 = 12

R₂ = 10Ω

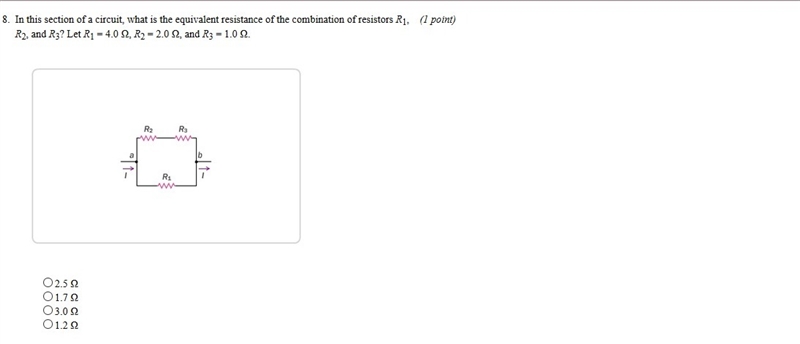

Q8.

`(1)/(Req) = (1)/(R2+R3) + (1)/(R1)`

`(1)/(Req) = (1)/(2+1) + (1)/(4)`

Req = 1.7Ω
