Question

A circuit is built based on the circuit diagram shown. What is the current in the 50 Ω resistor

Answer 1

1.2 A

Step-by-step explanation:

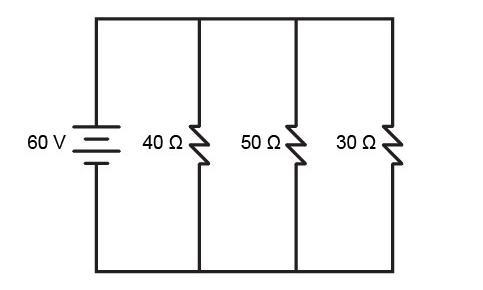

From the diagram attached, The three resistors are parallel because the each ends of the resistors are connected together. Since they are in parallel, the voltage across each resistor is the same. The voltage source connected in parallel to the resistors is 60 V. Therefore the voltage across the 50 Ω resistor is 60 V. Using ohm law:

Voltage (V) = Current (I) × Resistance (R)

V = IR

I = V/R

I = 60 V/ 50 Ω

I = 1.2 A

The current in the 50 Ω resistor is 1.2 A
