Find an expression for the frequency ff of small-angle oscillations. Express your answer in terms of some or all of the variables MMM, RRR, and free fall acceleration ggg.

1 Answer

5 votes

The frequency of the small angle of oscillation is
\[ \boxed{f = (1)/(2\pi) \sqrt{(g)/(1.4r)}} \]

How to determine the frequency of the small angle of oscillation?

Given that the moment of inertia
\(I\) about the axis of the solid sphere is calculated as:


\[ I = (1)/(2)mr^2 + mr^2 = 0.4mr^2 + mr^2 = 1.4mr^2 \]

The balancing torque is expressed as
\(I\alpha = mgr\theta\):


\[ 1.4mr^2 \omega^2 = mgr \]

This equation simplifies to:


\[ \omega^2 = (g)/(1.4r) \]

Solving for
\(\omega\):


\[ \omega = \sqrt{(g)/(1.4r)} \]

The frequency of the oscillation is given by
\(f = (\omega)/(2\pi)\):


\[ f = (1)/(2\pi) \sqrt{(g)/(1.4r)} \]

Hence, the frequency of the small angle of oscillation is:


\[ \boxed{f = (1)/(2\pi) \sqrt{(g)/(1.4r)}} \]

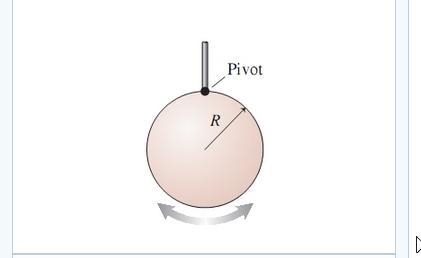

See image below for missing part of the question.

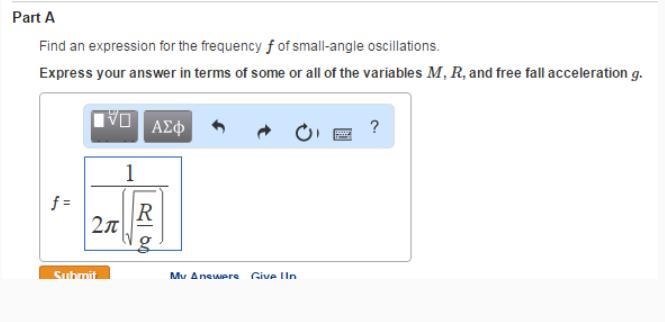

Find an expression for the frequency ff of small-angle oscillations. Express your-example-1
Find an expression for the frequency ff of small-angle oscillations. Express your-example-2
