What does the area enclosed by the cycle represent on a Ts diagram? Multiple Choice It represents the work done in the expansion process. It represents the efficiency of the engine. It represents the network It represents the heat rejected by the engine

User VahidN
by
8.0k points

1 Answer

6 votes

Answer:

- It represents the work done in the expansion process.

Step-by-step explanation:

The area enclosed by the cycle on a Ts (temperature-entropy) diagram represents the network or work done by the engine

1. The area enclosed by the cycle is like a shape on a special graph called a Ts diagram.

2. It represents something called "work done" by an engine.

3. Work done is like the effort or energy used to make something happen.

4. So, the area tells us how much effort or energy the engine uses or produces.

5. It helps us understand how well the engine is working or how efficient it is.

6. It doesn't represent heat or how much heat is thrown away by the engine.

I hope this explanation is helpful and easier to understand! Let me know if you have any further questions.

chatgpt

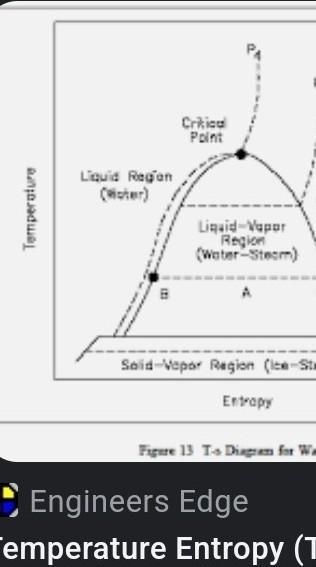

What does the area enclosed by the cycle represent on a Ts diagram? Multiple Choice-example-1
