Answer:
P(A or B) = 0.64
Explanation:

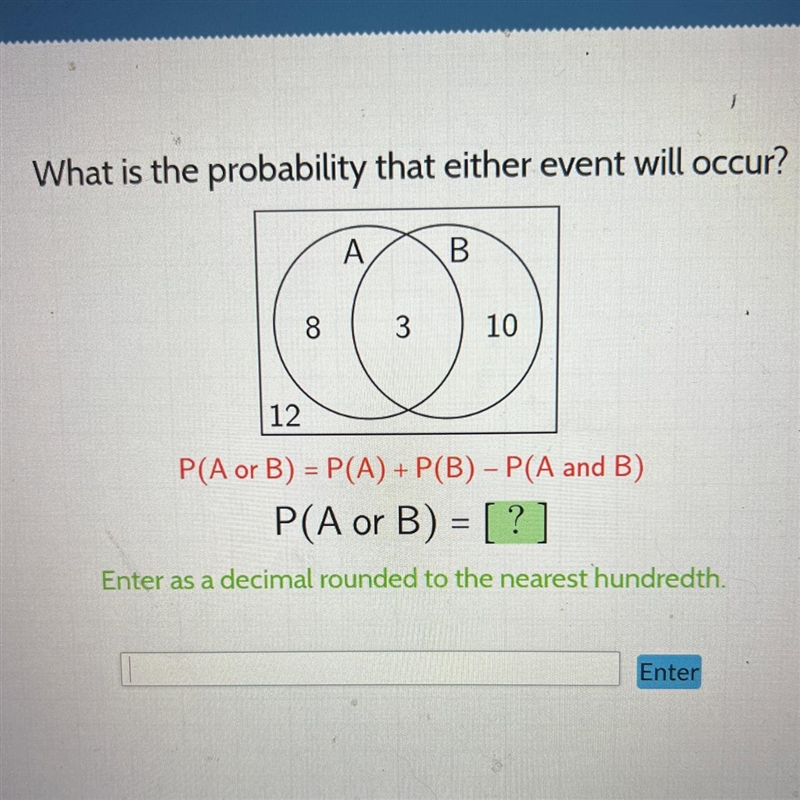

You want the probability that A or B will occur, given the occurrence counts shown in the Venn diagram.
A or B
The formula shown in the diagram shows you how to compute the probability. It can be simpler than that.
The number of counts in the circles A or B is ...
8 + 3 + 10 = 21.
The total number of counts in the diagram is ...
21 +12 = 33
Then ...

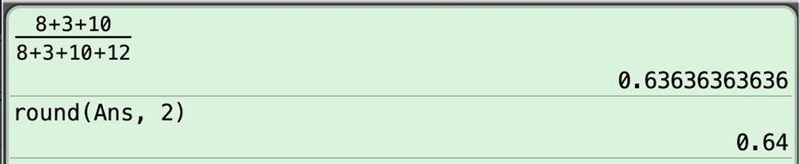

P(A or B) = (counts of A or B)/(total counts) = 21/33 = 7/11 = 0.6363...
Rounded to hundredths, the probability is ...
P(A or B) = 0.64
__
Additional comment
If you use the formula, it tells you ...
P(A or B) = 11/33 +13/33 -3/33 = 21/33 ≈ 0.64
Note that we have added 3/33 to the sum twice and subtracted it once. The computation shown above eliminates the extra addition and subtraction.
